Schema Deletion.xsd

schema location:	..\Deletion.xsd
attributeFormDefault:
elementFormDefault:

Elements	Complex types
Deletion	Deletion
	DeletionMessage

schema location:	https://tr02-wiki.dakosy.de/dokumentation/TR02XMLv14.4/TR02_Core.xsd
attributeFormDefault:
elementFormDefault:

Complex types	Simple types
AdditionalTransportMeansID	code10
AdditionalValue	Code17TypeContent
Code17Type	Code2TypeContent
Code2Type	Code30TypeContent
Code30Type	Code3TypeContent
Code3Type	Code4TypeContent
Code4Type	Code6TypeContent
Code6Type	CommentTypeContent
Contact	ConsigneeReferenceType
ContainerHeightType	ContainerHeightTypeContent
ContainerLengthType	ContainerLengthTypeContent
ContainerNumberType	ContainerNumber
ContainerTypeType	ContainerTypeTypeContent
DateTimeType	CountryDescription
DistanceType	CountType
DocumentCreationTime	CountType99

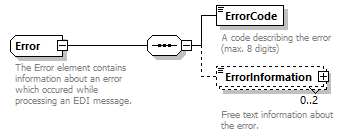

Error	dateTimeWithoutTimezone
generic	DeletionTypeType
generic255-35	DistanceUnitType
GpsCoordinatesType	DocumentExchangeNumber
InspectionType	DocumentTestIndicator
Interchange	Email

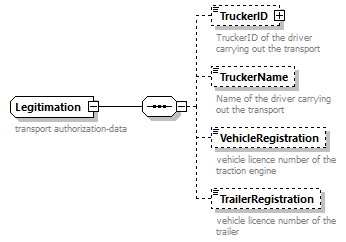

Legitimation	ErrorCode
LinearMeasureType	Fax

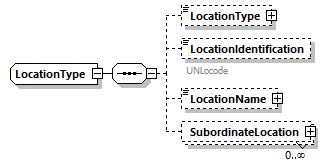

LocationType	GReferenceTypeContent
LocationTypeCode	IndicatorType
Message	InspectionTypeContent
MessageHeader	IReferenceTypeContent
NameType	ISOCodeType

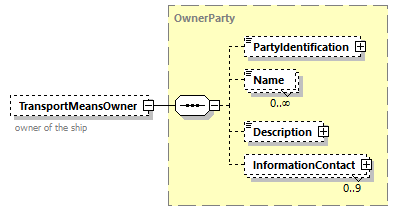

OwnerParty	LicensePlateEUFullRange
Participant	LinearMeasureTypeContent
ParticipantCode	LoadingIndicatorType
ParticipantInformationType	LocationIdentificationTypeContent
PartyType	LocationTypeContent
QrType	MessageCount

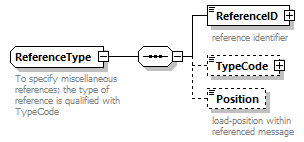

ReferenceType	MessageFunction
ReferenceTypeCode	MessageReferenceNumber
RegistrationNationalityType	Name
RegistrationNumberCodeType	Name2
RegistrationNumberType	ParticipantCodeType
SlotStatusDetailsType	Phone
SlotStatusHeaderType	QuayAccountNumberTypeContent

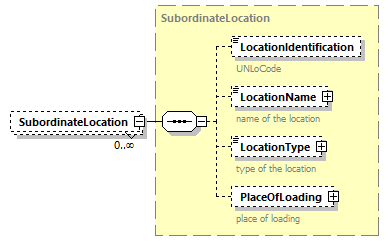

SubordinateLocation	Reference07Type
TemperatureMeasureType	Reference12Type
TerminalLocationType	Reference15Type
Text255Type	Reference17Type
TextType	Reference22Type
Transaction	Reference35Type
TransportCompanyCodeType	Reference50Type
TransportCompanyType	Reference60Type

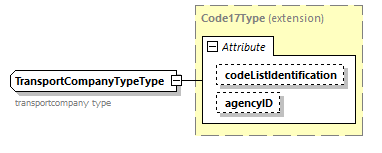

TransportCompanyTypeType	ReferenceIDType
TransportMeans	ReferenceTypeCodeContent
TransportMeansTypeCode	RegistrationNationality
TransportModeCode	RegistrationNumberCodeTypeContent
TruckerID	RegistrationNumberTypeContent
WeightMeasureType	RegistrationNumberTypePosition
	ResponseType
	SealNumberType
	SignificanceType
	TemperatureMeasureTypeContent
	Text255TypeContent
	TpStatus
	TransportCompanyNameType
	TransportMeansIdentificationType
	TransportMeansName
	TransportMeansTypeCodeContent
	TransportModeCodeContent
	TruckerIDType
	VoyageNumberType
	WeekType
	WeightMeasureTypeContent

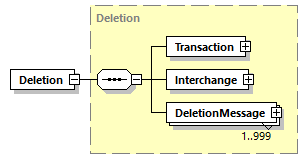

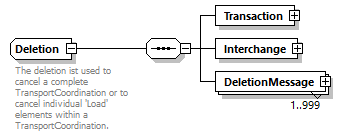

element Deletion

diagram
type	Deletion
properties	content  complex
children	Transaction Interchange DeletionMessage
source	<xs:element name="Deletion" type="Deletion"/>

complexType Deletion

diagram
children	Transaction Interchange DeletionMessage
used by	element  Deletion
annotation	documentation The deletion ist used to cancel a complete TransportCoordination or to cancel individual 'Load' elements within a TransportCoordination. documentation Die Deletion dient zur Stornierung einer kompletten TransportCoordination oder einzelner Ladeeinheiten einer TransportCoordination.
source	<xs:complexType name="Deletion">   <xs:annotation>     <xs:documentation xml:lang="EN">The deletion ist used to cancel a complete TransportCoordination or to cancel individual 'Load' elements within a TransportCoordination.</xs:documentation>     <xs:documentation xml:lang="DE">Die Deletion dient zur Stornierung einer kompletten TransportCoordination oder einzelner Ladeeinheiten einer TransportCoordination.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Transaction" type="Transaction"/>     <xs:element name="Interchange" type="Interchange"/>     <xs:element name="DeletionMessage" type="DeletionMessage" maxOccurs="999"/>   </xs:sequence> </xs:complexType>

element Deletion/Transaction

diagram
type	Transaction
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation code   xs:string            documentation transaction code documentation Code der Transaktion version   xs:string            documentation transaction version documentation Version der Transaktion type   xs:string            documentation transaction type (i.e. TransportCoordination, Response, ...) documentation Typ der Nachricht (z.B. TransportCoordination, Response, ...)
source	<xs:element name="Transaction" type="Transaction"/>

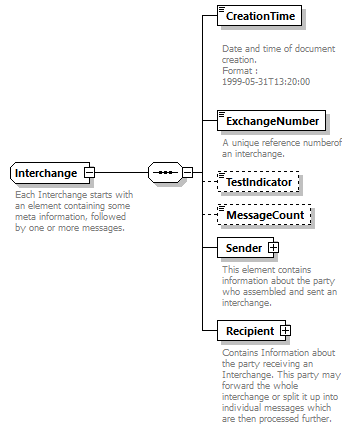

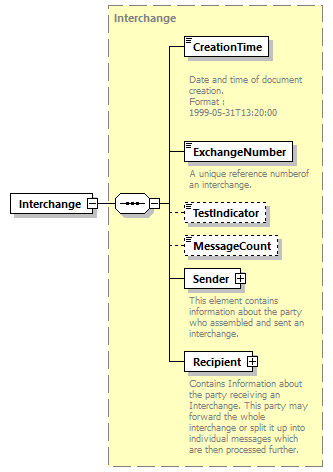

element Deletion/Interchange

diagram
type	Interchange
properties	content  complex
children	CreationTime ExchangeNumber TestIndicator MessageCount Sender Recipient
source	<xs:element name="Interchange" type="Interchange"/>

element Deletion/DeletionMessage

diagram
type	DeletionMessage
properties	minOcc  1 maxOcc  999 content  complex
children	MessageHeader ParticipantInformation TerminalLocation DeletionType Load Dispatcher Comment Supplement
attributes	Name   Type   Use   Default   Fixed   Annotation messageType   xs:string            messageVersionID   xs:string   required         documentation version of the messagedefinition that is used for this message documentation Version der Nachrichtendefinition, auf der eine Nachricht basiert
source	<xs:element name="DeletionMessage" type="DeletionMessage" maxOccurs="999"/>

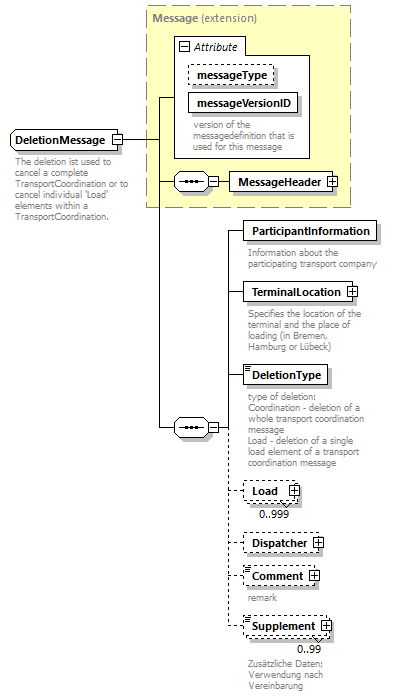

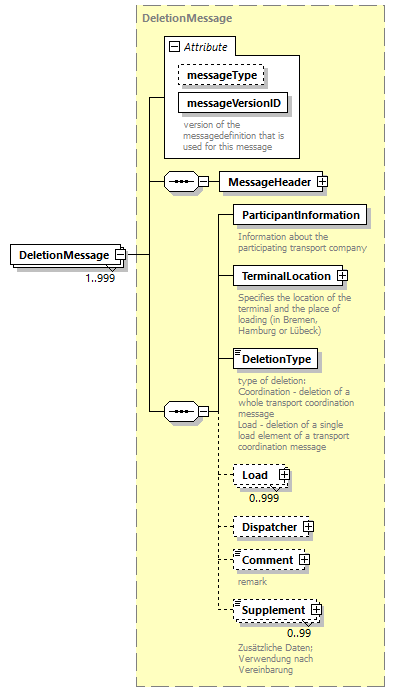

complexType DeletionMessage

diagram

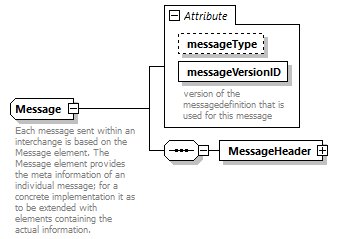

type	extension of Message
properties	base  Message
children	MessageHeader ParticipantInformation TerminalLocation DeletionType Load Dispatcher Comment Supplement
used by	element  Deletion/DeletionMessage
attributes	Name   Type   Use   Default   Fixed   Annotation messageType   xs:string            messageVersionID   xs:string   required         documentation version of the messagedefinition that is used for this message documentation Version der Nachrichtendefinition, auf der eine Nachricht basiert
annotation	documentation The deletion ist used to cancel a complete TransportCoordination or to cancel individual 'Load' elements within a TransportCoordination. documentation Die Deletion dient zur Stornierung einer kompletten TransportCoordination oder einzelner Ladeeinheiten einer TransportCoordination.
source	<xs:complexType name="DeletionMessage">   <xs:annotation>     <xs:documentation xml:lang="EN">The deletion ist used to cancel a complete TransportCoordination or to cancel individual 'Load' elements within a TransportCoordination.</xs:documentation>     <xs:documentation xml:lang="DE">Die Deletion dient zur Stornierung einer kompletten TransportCoordination oder einzelner Ladeeinheiten einer TransportCoordination.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="Message">       <xs:sequence>         <xs:element name="ParticipantInformation" type="ParticipantInformationType">           <xs:annotation>             <xs:documentation xml:lang="EN">Information about the participating transport company</xs:documentation>             <xs:documentation xml:lang="DE">Daten des beteiligten Transportunternehmer / Subunternehmer </xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="TerminalLocation" type="TerminalLocationType">           <xs:annotation>             <xs:documentation xml:lang="EN">Specifies the location of the terminal and the place of loading (in Bremen, Hamburg or Lübeck)</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="DeletionType" type="DeletionTypeType">           <xs:annotation>             <xs:documentation xml:lang="EN">type of deletion: Coordination - deletion of a whole transport coordination message Load - deletion of a single load element of a transport coordination message</xs:documentation>             <xs:documentation xml:lang="DE">Art der Löschung: Coordination - Löschung einer 'TransportCoordination' Load - Löschung einer einzelnen Ladeeinheit einer  'TransportCoordination'</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="Load" minOccurs="0" maxOccurs="999">           <xs:complexType>             <xs:sequence>               <xs:element name="Position" type="CountType">                 <xs:annotation>                   <xs:documentation xml:lang="EN">The position is a unique number / count within the message to unambiguosly identify the load. It corresponds to the position  of the load within the TransportCoordination Message</xs:documentation>                   <xs:documentation xml:lang="DE">laufende Nummer zur eindeutigen Identifikation der Ladung innerhalb der Nachricht. Die laufende Nummer in der Deletion entspricht der laufenden Nummer der Ladung  in der 'TransportCoordination'.</xs:documentation>                 </xs:annotation>               </xs:element>               <xs:choice minOccurs="0">                 <xs:element name="ContainerLoad">                   <xs:complexType>                     <xs:sequence>                       <xs:element name="Container" minOccurs="0">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="Number" type="ContainerNumberType" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">container ID / number</xs:documentation>                                 <xs:documentation xml:lang="DE">Containernummer</xs:documentation>                               </xs:annotation>                             </xs:element>                             <xs:element name="Length" type="ContainerLengthType" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">container length</xs:documentation>                                 <xs:documentation xml:lang="DE">Containerlänge</xs:documentation>                               </xs:annotation>                             </xs:element>                             <xs:element name="Height" type="ContainerHeightType" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">container height</xs:documentation>                                 <xs:documentation xml:lang="DE">Containerhöhe</xs:documentation>                               </xs:annotation>                             </xs:element>                             <xs:element name="Type" type="ContainerTypeType" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">container type</xs:documentation>                                 <xs:documentation xml:lang="DE">Containertyp</xs:documentation>                               </xs:annotation>                             </xs:element>                             <xs:element name="ISOCode" type="ISOCodeType" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">container ISO code</xs:documentation>                                 <xs:documentation xml:lang="DE">Container ISO Code</xs:documentation>                               </xs:annotation>                             </xs:element>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                     </xs:sequence>                   </xs:complexType>                 </xs:element>                 <xs:element name="ConventionalLoad">                   <xs:complexType>                     <xs:choice>                       <xs:element name="GeneralCargo">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="Transport">                               <xs:complexType>                                 <xs:sequence>                                   <xs:element name="Number">                                     <xs:annotation>                                       <xs:documentation xml:lang="EN">transport number / reference</xs:documentation>                                       <xs:documentation xml:lang="DE">Transportnummer</xs:documentation>                                     </xs:annotation>                                   </xs:element>                                   <xs:element name="Client">                                     <xs:annotation>                                       <xs:documentation xml:lang="EN">client</xs:documentation>                                       <xs:documentation xml:lang="DE">Mandant</xs:documentation>                                     </xs:annotation>                                   </xs:element>                                 </xs:sequence>                               </xs:complexType>                             </xs:element>                             <xs:element name="MarksAndNumber" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">marks und numbers (reference with which the packages are marked)</xs:documentation>                                 <xs:documentation xml:lang="DE">Markierung</xs:documentation>                               </xs:annotation>                             </xs:element>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                       <xs:element name="Vehicle">                         <xs:complexType>                           <xs:sequence>                             <xs:element name="LoadNumber" type="Reference50Type" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">Load number, tour number, operation number</xs:documentation>                                 <xs:documentation xml:lang="DE">Ladungsnummer, Tournummer, Vorgangsnummer</xs:documentation>                               </xs:annotation>                             </xs:element>                             <xs:element name="BHTPortOrder" type="Reference07Type" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">BHT number or portordernumber for H and H</xs:documentation>                                 <xs:documentation xml:lang="DE">BHT-Nummer oder Portodernummer bei H und H</xs:documentation>                               </xs:annotation>                             </xs:element>                             <xs:element name="VIN" type="Reference17Type" minOccurs="0">                               <xs:annotation>                                 <xs:documentation xml:lang="EN">Vehicle identification number</xs:documentation>                                 <xs:documentation xml:lang="DE">Fahrgestellnummer</xs:documentation>                               </xs:annotation>                             </xs:element>                           </xs:sequence>                         </xs:complexType>                       </xs:element>                     </xs:choice>                   </xs:complexType>                 </xs:element>               </xs:choice>               <xs:element name="Supplement" type="generic" minOccurs="0" maxOccurs="99">                 <xs:annotation>                   <xs:documentation xml:lang="DE">Zusätzliche Daten; Verwendung nach Vereinbarung</xs:documentation>                   <xs:documentation xml:lang="EN">supplemental data; usage according to mutual agreement</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>         <xs:element name="Dispatcher" type="Contact" minOccurs="0"/>         <xs:element name="Comment" type="Text255Type" minOccurs="0">           <xs:annotation>             <xs:documentation xml:lang="EN">remark</xs:documentation>             <xs:documentation xml:lang="DE">Bemerkung</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="Supplement" type="generic" minOccurs="0" maxOccurs="99">           <xs:annotation>             <xs:documentation xml:lang="DE">Zusätzliche Daten; Verwendung nach Vereinbarung</xs:documentation>             <xs:documentation xml:lang="EN">supplemental data; usage according to mutual agreement</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

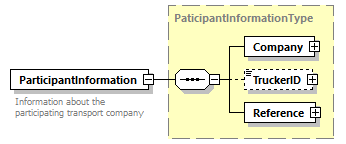

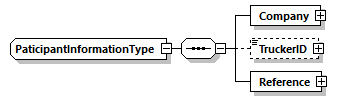

element DeletionMessage/ParticipantInformation

diagram
type	ParticipantInformationType
properties	content  complex
children	Company TruckerID Reference
annotation	documentation Information about the participating transport company documentation Daten des beteiligten Transportunternehmer / Subunternehmer
source	<xs:element name="ParticipantInformation" type="ParticipantInformationType">   <xs:annotation>     <xs:documentation xml:lang="EN">Information about the participating transport company</xs:documentation>     <xs:documentation xml:lang="DE">Daten des beteiligten Transportunternehmer / Subunternehmer </xs:documentation>   </xs:annotation> </xs:element>

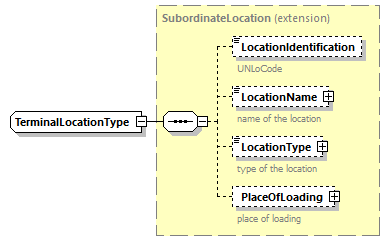

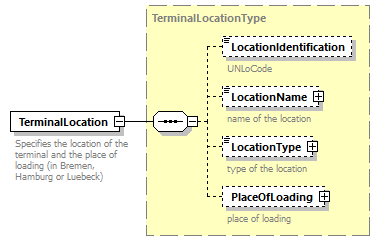

element DeletionMessage/TerminalLocation

diagram
type	TerminalLocationType
properties	content  complex
children	LocationIdentification LocationName LocationType PlaceOfLoading
annotation	documentation Specifies the location of the terminal and the place of loading (in Bremen, Hamburg or Lübeck)
source	<xs:element name="TerminalLocation" type="TerminalLocationType">   <xs:annotation>     <xs:documentation xml:lang="EN">Specifies the location of the terminal and the place of loading (in Bremen, Hamburg or Lübeck)</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/DeletionType

diagram
type	DeletionTypeType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Coordination enumeration  Load
annotation	documentation type of deletion: Coordination - deletion of a whole transport coordination message Load - deletion of a single load element of a transport coordination message documentation Art der Löschung: Coordination - Löschung einer 'TransportCoordination' Load - Löschung einer einzelnen Ladeeinheit einer  'TransportCoordination'
source	<xs:element name="DeletionType" type="DeletionTypeType">   <xs:annotation>     <xs:documentation xml:lang="EN">type of deletion: Coordination - deletion of a whole transport coordination message Load - deletion of a single load element of a transport coordination message</xs:documentation>     <xs:documentation xml:lang="DE">Art der Löschung: Coordination - Löschung einer 'TransportCoordination' Load - Löschung einer einzelnen Ladeeinheit einer  'TransportCoordination'</xs:documentation>   </xs:annotation> </xs:element>

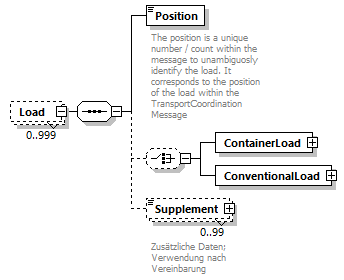

element DeletionMessage/Load

diagram
properties	minOcc  0 maxOcc  999 content  complex
children	Position ContainerLoad ConventionalLoad Supplement
source	<xs:element name="Load" minOccurs="0" maxOccurs="999">   <xs:complexType>     <xs:sequence>       <xs:element name="Position" type="CountType">         <xs:annotation>           <xs:documentation xml:lang="EN">The position is a unique number / count within the message to unambiguosly identify the load. It corresponds to the position  of the load within the TransportCoordination Message</xs:documentation>           <xs:documentation xml:lang="DE">laufende Nummer zur eindeutigen Identifikation der Ladung innerhalb der Nachricht. Die laufende Nummer in der Deletion entspricht der laufenden Nummer der Ladung  in der 'TransportCoordination'.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:choice minOccurs="0">         <xs:element name="ContainerLoad">           <xs:complexType>             <xs:sequence>               <xs:element name="Container" minOccurs="0">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="Number" type="ContainerNumberType" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">container ID / number</xs:documentation>                         <xs:documentation xml:lang="DE">Containernummer</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="Length" type="ContainerLengthType" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">container length</xs:documentation>                         <xs:documentation xml:lang="DE">Containerlänge</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="Height" type="ContainerHeightType" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">container height</xs:documentation>                         <xs:documentation xml:lang="DE">Containerhöhe</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="Type" type="ContainerTypeType" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">container type</xs:documentation>                         <xs:documentation xml:lang="DE">Containertyp</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="ISOCode" type="ISOCodeType" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">container ISO code</xs:documentation>                         <xs:documentation xml:lang="DE">Container ISO Code</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>         <xs:element name="ConventionalLoad">           <xs:complexType>             <xs:choice>               <xs:element name="GeneralCargo">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="Transport">                       <xs:complexType>                         <xs:sequence>                           <xs:element name="Number">                             <xs:annotation>                               <xs:documentation xml:lang="EN">transport number / reference</xs:documentation>                               <xs:documentation xml:lang="DE">Transportnummer</xs:documentation>                             </xs:annotation>                           </xs:element>                           <xs:element name="Client">                             <xs:annotation>                               <xs:documentation xml:lang="EN">client</xs:documentation>                               <xs:documentation xml:lang="DE">Mandant</xs:documentation>                             </xs:annotation>                           </xs:element>                         </xs:sequence>                       </xs:complexType>                     </xs:element>                     <xs:element name="MarksAndNumber" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">marks und numbers (reference with which the packages are marked)</xs:documentation>                         <xs:documentation xml:lang="DE">Markierung</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>               <xs:element name="Vehicle">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="LoadNumber" type="Reference50Type" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">Load number, tour number, operation number</xs:documentation>                         <xs:documentation xml:lang="DE">Ladungsnummer, Tournummer, Vorgangsnummer</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="BHTPortOrder" type="Reference07Type" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">BHT number or portordernumber for H and H</xs:documentation>                         <xs:documentation xml:lang="DE">BHT-Nummer oder Portodernummer bei H und H</xs:documentation>                       </xs:annotation>                     </xs:element>                     <xs:element name="VIN" type="Reference17Type" minOccurs="0">                       <xs:annotation>                         <xs:documentation xml:lang="EN">Vehicle identification number</xs:documentation>                         <xs:documentation xml:lang="DE">Fahrgestellnummer</xs:documentation>                       </xs:annotation>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>             </xs:choice>           </xs:complexType>         </xs:element>       </xs:choice>       <xs:element name="Supplement" type="generic" minOccurs="0" maxOccurs="99">         <xs:annotation>           <xs:documentation xml:lang="DE">Zusätzliche Daten; Verwendung nach Vereinbarung</xs:documentation>           <xs:documentation xml:lang="EN">supplemental data; usage according to mutual agreement</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DeletionMessage/Load/Position

diagram
type	CountType
properties	content  simple
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation The position is a unique number / count within the message to unambiguosly identify the load. It corresponds to the position  of the load within the TransportCoordination Message documentation laufende Nummer zur eindeutigen Identifikation der Ladung innerhalb der Nachricht. Die laufende Nummer in der Deletion entspricht der laufenden Nummer der Ladung  in der 'TransportCoordination'.
source	<xs:element name="Position" type="CountType">   <xs:annotation>     <xs:documentation xml:lang="EN">The position is a unique number / count within the message to unambiguosly identify the load. It corresponds to the position  of the load within the TransportCoordination Message</xs:documentation>     <xs:documentation xml:lang="DE">laufende Nummer zur eindeutigen Identifikation der Ladung innerhalb der Nachricht. Die laufende Nummer in der Deletion entspricht der laufenden Nummer der Ladung  in der 'TransportCoordination'.</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ContainerLoad

diagram
properties	content  complex
children	Container
source	<xs:element name="ContainerLoad">   <xs:complexType>     <xs:sequence>       <xs:element name="Container" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Number" type="ContainerNumberType" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">container ID / number</xs:documentation>                 <xs:documentation xml:lang="DE">Containernummer</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Length" type="ContainerLengthType" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">container length</xs:documentation>                 <xs:documentation xml:lang="DE">Containerlänge</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Height" type="ContainerHeightType" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">container height</xs:documentation>                 <xs:documentation xml:lang="DE">Containerhöhe</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Type" type="ContainerTypeType" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">container type</xs:documentation>                 <xs:documentation xml:lang="DE">Containertyp</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="ISOCode" type="ISOCodeType" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">container ISO code</xs:documentation>                 <xs:documentation xml:lang="DE">Container ISO Code</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DeletionMessage/Load/ContainerLoad/Container

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Number Length Height Type ISOCode
source	<xs:element name="Container" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Number" type="ContainerNumberType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">container ID / number</xs:documentation>           <xs:documentation xml:lang="DE">Containernummer</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Length" type="ContainerLengthType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">container length</xs:documentation>           <xs:documentation xml:lang="DE">Containerlänge</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Height" type="ContainerHeightType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">container height</xs:documentation>           <xs:documentation xml:lang="DE">Containerhöhe</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Type" type="ContainerTypeType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">container type</xs:documentation>           <xs:documentation xml:lang="DE">Containertyp</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="ISOCode" type="ISOCodeType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">container ISO code</xs:documentation>           <xs:documentation xml:lang="DE">Container ISO Code</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DeletionMessage/Load/ContainerLoad/Container/Number

diagram
type	ContainerNumberType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  12
attributes	Name   Type   Use   Default   Fixed   Annotation shippersOwned   IndicatorType   optional
annotation	documentation container ID / number documentation Containernummer
source	<xs:element name="Number" type="ContainerNumberType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">container ID / number</xs:documentation>     <xs:documentation xml:lang="DE">Containernummer</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ContainerLoad/Container/Length

diagram
type	ContainerLengthType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation length  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation container length documentation Containerlänge
source	<xs:element name="Length" type="ContainerLengthType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">container length</xs:documentation>     <xs:documentation xml:lang="DE">Containerlänge</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ContainerLoad/Container/Height

diagram
type	ContainerHeightType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation length  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation container height documentation Containerhöhe
source	<xs:element name="Height" type="ContainerHeightType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">container height</xs:documentation>     <xs:documentation xml:lang="DE">Containerhöhe</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ContainerLoad/Container/Type

diagram
type	ContainerTypeType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation length  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation container type documentation Containertyp
source	<xs:element name="Type" type="ContainerTypeType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">container type</xs:documentation>     <xs:documentation xml:lang="DE">Containertyp</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ContainerLoad/Container/ISOCode

diagram
type	ISOCodeType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation length  4
annotation	documentation container ISO code documentation Container ISO Code
source	<xs:element name="ISOCode" type="ISOCodeType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">container ISO code</xs:documentation>     <xs:documentation xml:lang="DE">Container ISO Code</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ConventionalLoad

diagram
properties	content  complex
children	GeneralCargo Vehicle
source	<xs:element name="ConventionalLoad">   <xs:complexType>     <xs:choice>       <xs:element name="GeneralCargo">         <xs:complexType>           <xs:sequence>             <xs:element name="Transport">               <xs:complexType>                 <xs:sequence>                   <xs:element name="Number">                     <xs:annotation>                       <xs:documentation xml:lang="EN">transport number / reference</xs:documentation>                       <xs:documentation xml:lang="DE">Transportnummer</xs:documentation>                     </xs:annotation>                   </xs:element>                   <xs:element name="Client">                     <xs:annotation>                       <xs:documentation xml:lang="EN">client</xs:documentation>                       <xs:documentation xml:lang="DE">Mandant</xs:documentation>                     </xs:annotation>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>             <xs:element name="MarksAndNumber" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">marks und numbers (reference with which the packages are marked)</xs:documentation>                 <xs:documentation xml:lang="DE">Markierung</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Vehicle">         <xs:complexType>           <xs:sequence>             <xs:element name="LoadNumber" type="Reference50Type" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">Load number, tour number, operation number</xs:documentation>                 <xs:documentation xml:lang="DE">Ladungsnummer, Tournummer, Vorgangsnummer</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="BHTPortOrder" type="Reference07Type" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">BHT number or portordernumber for H and H</xs:documentation>                 <xs:documentation xml:lang="DE">BHT-Nummer oder Portodernummer bei H und H</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="VIN" type="Reference17Type" minOccurs="0">               <xs:annotation>                 <xs:documentation xml:lang="EN">Vehicle identification number</xs:documentation>                 <xs:documentation xml:lang="DE">Fahrgestellnummer</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:choice>   </xs:complexType> </xs:element>

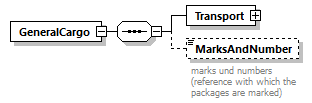

element DeletionMessage/Load/ConventionalLoad/GeneralCargo

diagram
properties	content  complex
children	Transport MarksAndNumber
source	<xs:element name="GeneralCargo">   <xs:complexType>     <xs:sequence>       <xs:element name="Transport">         <xs:complexType>           <xs:sequence>             <xs:element name="Number">               <xs:annotation>                 <xs:documentation xml:lang="EN">transport number / reference</xs:documentation>                 <xs:documentation xml:lang="DE">Transportnummer</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="Client">               <xs:annotation>                 <xs:documentation xml:lang="EN">client</xs:documentation>                 <xs:documentation xml:lang="DE">Mandant</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="MarksAndNumber" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">marks und numbers (reference with which the packages are marked)</xs:documentation>           <xs:documentation xml:lang="DE">Markierung</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DeletionMessage/Load/ConventionalLoad/GeneralCargo/Transport

diagram
properties	content  complex
children	Number Client
source	<xs:element name="Transport">   <xs:complexType>     <xs:sequence>       <xs:element name="Number">         <xs:annotation>           <xs:documentation xml:lang="EN">transport number / reference</xs:documentation>           <xs:documentation xml:lang="DE">Transportnummer</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Client">         <xs:annotation>           <xs:documentation xml:lang="EN">client</xs:documentation>           <xs:documentation xml:lang="DE">Mandant</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DeletionMessage/Load/ConventionalLoad/GeneralCargo/Transport/Number

diagram
annotation	documentation transport number / reference documentation Transportnummer
source	<xs:element name="Number">   <xs:annotation>     <xs:documentation xml:lang="EN">transport number / reference</xs:documentation>     <xs:documentation xml:lang="DE">Transportnummer</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ConventionalLoad/GeneralCargo/Transport/Client

diagram
annotation	documentation client documentation Mandant
source	<xs:element name="Client">   <xs:annotation>     <xs:documentation xml:lang="EN">client</xs:documentation>     <xs:documentation xml:lang="DE">Mandant</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ConventionalLoad/GeneralCargo/MarksAndNumber

diagram
properties	minOcc  0 maxOcc  1
annotation	documentation marks und numbers (reference with which the packages are marked) documentation Markierung
source	<xs:element name="MarksAndNumber" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">marks und numbers (reference with which the packages are marked)</xs:documentation>     <xs:documentation xml:lang="DE">Markierung</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ConventionalLoad/Vehicle

diagram
properties	content  complex
children	LoadNumber BHTPortOrder VIN
source	<xs:element name="Vehicle">   <xs:complexType>     <xs:sequence>       <xs:element name="LoadNumber" type="Reference50Type" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">Load number, tour number, operation number</xs:documentation>           <xs:documentation xml:lang="DE">Ladungsnummer, Tournummer, Vorgangsnummer</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="BHTPortOrder" type="Reference07Type" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">BHT number or portordernumber for H and H</xs:documentation>           <xs:documentation xml:lang="DE">BHT-Nummer oder Portodernummer bei H und H</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="VIN" type="Reference17Type" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="EN">Vehicle identification number</xs:documentation>           <xs:documentation xml:lang="DE">Fahrgestellnummer</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element DeletionMessage/Load/ConventionalLoad/Vehicle/LoadNumber

diagram
type	Reference50Type
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  50
annotation	documentation Load number, tour number, operation number documentation Ladungsnummer, Tournummer, Vorgangsnummer
source	<xs:element name="LoadNumber" type="Reference50Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">Load number, tour number, operation number</xs:documentation>     <xs:documentation xml:lang="DE">Ladungsnummer, Tournummer, Vorgangsnummer</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ConventionalLoad/Vehicle/BHTPortOrder

diagram
type	Reference07Type
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  7
annotation	documentation BHT number or portordernumber for H and H documentation BHT-Nummer oder Portodernummer bei H und H
source	<xs:element name="BHTPortOrder" type="Reference07Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">BHT number or portordernumber for H and H</xs:documentation>     <xs:documentation xml:lang="DE">BHT-Nummer oder Portodernummer bei H und H</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/ConventionalLoad/Vehicle/VIN

diagram
type	Reference17Type
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  17
annotation	documentation Vehicle identification number documentation Fahrgestellnummer
source	<xs:element name="VIN" type="Reference17Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">Vehicle identification number</xs:documentation>     <xs:documentation xml:lang="DE">Fahrgestellnummer</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Load/Supplement

diagram
type	generic
properties	minOcc  0 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation key   code10
annotation	documentation Zusätzliche Daten; Verwendung nach Vereinbarung documentation supplemental data; usage according to mutual agreement
source	<xs:element name="Supplement" type="generic" minOccurs="0" maxOccurs="99">   <xs:annotation>     <xs:documentation xml:lang="DE">Zusätzliche Daten; Verwendung nach Vereinbarung</xs:documentation>     <xs:documentation xml:lang="EN">supplemental data; usage according to mutual agreement</xs:documentation>   </xs:annotation> </xs:element>

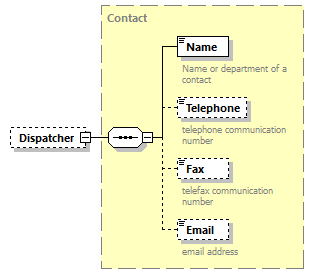

element DeletionMessage/Dispatcher

diagram
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Name Telephone Fax Email
source	<xs:element name="Dispatcher" type="Contact" minOccurs="0"/>

element DeletionMessage/Comment

diagram
type	Text255Type
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  255
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale         DE
annotation	documentation remark documentation Bemerkung
source	<xs:element name="Comment" type="Text255Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">remark</xs:documentation>     <xs:documentation xml:lang="DE">Bemerkung</xs:documentation>   </xs:annotation> </xs:element>

element DeletionMessage/Supplement

diagram
type	generic
properties	minOcc  0 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation key   code10
annotation	documentation Zusätzliche Daten; Verwendung nach Vereinbarung documentation supplemental data; usage according to mutual agreement
source	<xs:element name="Supplement" type="generic" minOccurs="0" maxOccurs="99">   <xs:annotation>     <xs:documentation xml:lang="DE">Zusätzliche Daten; Verwendung nach Vereinbarung</xs:documentation>     <xs:documentation xml:lang="EN">supplemental data; usage according to mutual agreement</xs:documentation>   </xs:annotation> </xs:element>

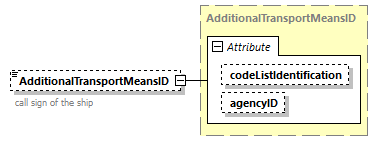

complexType AdditionalTransportMeansID

diagram
type	extension of xs:string
properties	base  xs:string

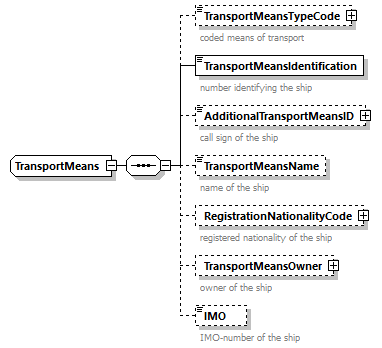

used by	element  TransportMeans/AdditionalTransportMeansID
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="AdditionalTransportMeansID">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute AdditionalTransportMeansID/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute AdditionalTransportMeansID/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType AdditionalValue

diagram
children	Name Value

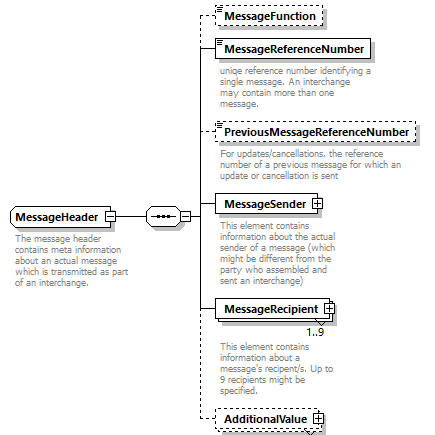

used by	element  MessageHeader/AdditionalValue
source	<xs:complexType name="AdditionalValue">   <xs:sequence>     <xs:element name="Name" type="xs:string"/>     <xs:element name="Value" type="xs:string"/>   </xs:sequence> </xs:complexType>

element AdditionalValue/Name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Name" type="xs:string"/>

element AdditionalValue/Value

diagram
type	xs:string
properties	content  simple
source	<xs:element name="Value" type="xs:string"/>

complexType Code17Type

diagram
type	extension of Code17TypeContent
properties	base  Code17TypeContent

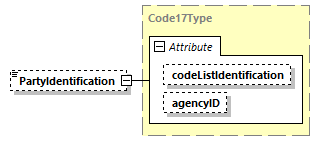

used by	elements  PartyType/PartyIdentification SlotStatusDetailsType/SlotStatusDetails/SpecialSlot/SpecialSlotDetails/SlotClass complexType  TransportCompanyTypeType
facets	Kind  Value  Annotation minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="Code17Type">   <xs:simpleContent>     <xs:extension base="Code17TypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Code17Type/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute Code17Type/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Code2Type

diagram
type	extension of Code2TypeContent
properties	base  Code2TypeContent
facets	Kind  Value  Annotation minLength  1 maxLength  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="Code2Type">   <xs:simpleContent>     <xs:extension base="Code2TypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Code2Type/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute Code2Type/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Code30Type

diagram
type	extension of Code30TypeContent
properties	base  Code30TypeContent
facets	Kind  Value  Annotation minLength  1 maxLength  30
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="Code30Type">   <xs:simpleContent>     <xs:extension base="Code30TypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Code30Type/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute Code30Type/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Code3Type

diagram
type	extension of Code3TypeContent
properties	base  Code3TypeContent
facets	Kind  Value  Annotation minLength  1 maxLength  3
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="Code3Type">   <xs:simpleContent>     <xs:extension base="Code3TypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Code3Type/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute Code3Type/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Code4Type

diagram
type	extension of Code4TypeContent
properties	base  Code4TypeContent

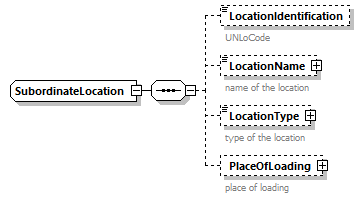

used by	element  SubordinateLocation/PlaceOfLoading/Code complexType  TransportCompanyCodeType
facets	Kind  Value  Annotation minLength  1 maxLength  4
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="Code4Type">   <xs:simpleContent>     <xs:extension base="Code4TypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Code4Type/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute Code4Type/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Code6Type

diagram
type	extension of Code6TypeContent
properties	base  Code6TypeContent
facets	Kind  Value  Annotation minLength  1 maxLength  6
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="Code6Type">   <xs:simpleContent>     <xs:extension base="Code6TypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Code6Type/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute Code6Type/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

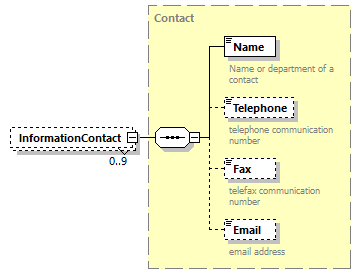

complexType Contact

diagram
children	Name Telephone Fax Email
used by	elements  Participant/Contact DeletionMessage/Dispatcher PartyType/InformationContact
annotation	documentation Contact Information documentation Kontaktinformationen
source	<xs:complexType name="Contact">   <xs:annotation>     <xs:documentation xml:lang="EN">Contact Information</xs:documentation>     <xs:documentation xml:lang="DE">Kontaktinformationen</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Name" type="Name">       <xs:annotation>         <xs:documentation xml:lang="EN">Name or department of a contact</xs:documentation>         <xs:documentation xml:lang="DE">Name oder Abteilung des Kontaktpartners</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Telephone" type="Phone" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">telephone communication number</xs:documentation>         <xs:documentation xml:lang="DE">Telefonnummer</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Fax" type="Fax" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">telefax communication number</xs:documentation>         <xs:documentation xml:lang="DE">Telefaxnummer</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Email" type="Email" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">email address</xs:documentation>         <xs:documentation xml:lang="DE">E-Mail Adresse</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element Contact/Name

diagram
type	Name
properties	content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation Name or department of a contact documentation Name oder Abteilung des Kontaktpartners
source	<xs:element name="Name" type="Name">   <xs:annotation>     <xs:documentation xml:lang="EN">Name or department of a contact</xs:documentation>     <xs:documentation xml:lang="DE">Name oder Abteilung des Kontaktpartners</xs:documentation>   </xs:annotation> </xs:element>

element Contact/Telephone

diagram
type	Phone
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation telephone communication number documentation Telefonnummer
source	<xs:element name="Telephone" type="Phone" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">telephone communication number</xs:documentation>     <xs:documentation xml:lang="DE">Telefonnummer</xs:documentation>   </xs:annotation> </xs:element>

element Contact/Fax

diagram
type	Fax
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation telefax communication number documentation Telefaxnummer
source	<xs:element name="Fax" type="Fax" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">telefax communication number</xs:documentation>     <xs:documentation xml:lang="DE">Telefaxnummer</xs:documentation>   </xs:annotation> </xs:element>

element Contact/Email

diagram
type	Email
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  3 maxLength  70
annotation	documentation email address documentation E-Mail Adresse
source	<xs:element name="Email" type="Email" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">email address</xs:documentation>     <xs:documentation xml:lang="DE">E-Mail Adresse</xs:documentation>   </xs:annotation> </xs:element>

complexType ContainerHeightType

diagram
type	extension of ContainerHeightTypeContent
properties	base  ContainerHeightTypeContent
used by	element  DeletionMessage/Load/ContainerLoad/Container/Height
facets	Kind  Value  Annotation length  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="ContainerHeightType">   <xs:simpleContent>     <xs:extension base="ContainerHeightTypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ContainerHeightType/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute ContainerHeightType/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType ContainerLengthType

diagram
type	extension of ContainerLengthTypeContent
properties	base  ContainerLengthTypeContent
used by	element  DeletionMessage/Load/ContainerLoad/Container/Length
facets	Kind  Value  Annotation length  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="ContainerLengthType">   <xs:simpleContent>     <xs:extension base="ContainerLengthTypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ContainerLengthType/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute ContainerLengthType/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType ContainerNumberType

diagram
type	extension of ContainerNumber
properties	base  ContainerNumber
used by	element  DeletionMessage/Load/ContainerLoad/Container/Number
facets	Kind  Value  Annotation minLength  1 maxLength  12
attributes	Name   Type   Use   Default   Fixed   Annotation shippersOwned   IndicatorType   optional
source	<xs:complexType name="ContainerNumberType">   <xs:simpleContent>     <xs:extension base="ContainerNumber">       <xs:attribute name="shippersOwned" type="IndicatorType" use="optional"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ContainerNumberType/@shippersOwned

type	IndicatorType
properties	use  optional
source	<xs:attribute name="shippersOwned" type="IndicatorType" use="optional"/>

complexType ContainerTypeType

diagram
type	extension of ContainerTypeTypeContent
properties	base  ContainerTypeTypeContent
used by	element  DeletionMessage/Load/ContainerLoad/Container/Type
facets	Kind  Value  Annotation length  2
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="ContainerTypeType">   <xs:simpleContent>     <xs:extension base="ContainerTypeTypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ContainerTypeType/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute ContainerTypeType/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

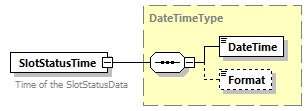

complexType DateTimeType

diagram
children	DateTime Format
used by	elements  SlotStatusDetailsType/SlotStatusDetails/SlotBegin SlotStatusDetailsType/SlotStatusDetails/SlotEnd SlotStatusHeaderType/SlotStatusTime
source	<xs:complexType name="DateTimeType">   <xs:sequence>     <xs:element name="DateTime" type="dateTimeWithoutTimezone"/>     <xs:element name="Format" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DateTimeType/DateTime

diagram
type	dateTimeWithoutTimezone
properties	content  simple
facets	Kind  Value  Annotation pattern  .+T[^Z+-]+
source	<xs:element name="DateTime" type="dateTimeWithoutTimezone"/>

element DateTimeType/Format

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Format" type="xs:string" minOccurs="0"/>

complexType DistanceType

diagram
type	extension of xs:decimal
properties	base  xs:decimal
attributes	Name   Type   Use   Default   Fixed   Annotation unit   DistanceUnitType   required
source	<xs:complexType name="DistanceType">   <xs:simpleContent>     <xs:extension base="xs:decimal">       <xs:attribute name="unit" type="DistanceUnitType" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute DistanceType/@unit

type	DistanceUnitType
properties	use  required
facets	Kind  Value  Annotation enumeration  km enumeration  mi enumeration  m
source	<xs:attribute name="unit" type="DistanceUnitType" use="required"/>

complexType DocumentCreationTime

diagram
type	extension of dateTimeWithoutTimezone
properties	base  dateTimeWithoutTimezone
used by	element  Interchange/CreationTime
facets	Kind  Value  Annotation pattern  .+T[^Z+-]+
annotation	documentation Date and time of document creation. Format : 1999-05-31T13:20:00       documentation Datum und Zeit der Dateierstellung. Format : 1999-05-31T13:20:00
source	<xs:complexType name="DocumentCreationTime">   <xs:annotation>     <xs:documentation xml:lang="EN"> Date and time of document creation. Format : 1999-05-31T13:20:00       </xs:documentation>     <xs:documentation xml:lang="DE"> Datum und Zeit der Dateierstellung. Format : 1999-05-31T13:20:00       </xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="dateTimeWithoutTimezone"/>   </xs:simpleContent> </xs:complexType>

complexType Error

diagram
children	ErrorCode ErrorInformation
annotation	documentation The Error element contains information about an error which occured while processing an EDI message. documentation Das Error-Element beschreibt einen bei der Verarbeitung einer EDI-Nachricht aufgetretenen Fehler.
source	<xs:complexType name="Error">   <xs:annotation>     <xs:documentation xml:lang="EN">The Error element contains information about an error which occured while processing an EDI message.</xs:documentation>     <xs:documentation xml:lang="DE">Das Error-Element beschreibt einen bei der Verarbeitung einer EDI-Nachricht aufgetretenen Fehler.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ErrorCode" type="ErrorCode">       <xs:annotation>         <xs:documentation xml:lang="EN">A code describing the error (max. 8 digits)</xs:documentation>         <xs:documentation xml:lang="DE">Ein bis zu 8-Stelliger Fehlercode</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ErrorInformation" type="TextType" minOccurs="0" maxOccurs="2">       <xs:annotation>         <xs:documentation xml:lang="EN">Free text information about the error.</xs:documentation>         <xs:documentation xml:lang="DE">Freitextinformationen zum aufgetretenen Fehler.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element Error/ErrorCode

diagram
type	ErrorCode
properties	content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  8
annotation	documentation A code describing the error (max. 8 digits) documentation Ein bis zu 8-Stelliger Fehlercode
source	<xs:element name="ErrorCode" type="ErrorCode">   <xs:annotation>     <xs:documentation xml:lang="EN">A code describing the error (max. 8 digits)</xs:documentation>     <xs:documentation xml:lang="DE">Ein bis zu 8-Stelliger Fehlercode</xs:documentation>   </xs:annotation> </xs:element>

element Error/ErrorInformation

diagram
type	TextType
properties	minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string   optional   DE
annotation	documentation Free text information about the error. documentation Freitextinformationen zum aufgetretenen Fehler.
source	<xs:element name="ErrorInformation" type="TextType" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation xml:lang="EN">Free text information about the error.</xs:documentation>     <xs:documentation xml:lang="DE">Freitextinformationen zum aufgetretenen Fehler.</xs:documentation>   </xs:annotation> </xs:element>

complexType generic

diagram
type	extension of xs:string
properties	base  xs:string
used by	elements  DeletionMessage/Load/Supplement DeletionMessage/Supplement
attributes	Name   Type   Use   Default   Fixed   Annotation key   code10
source	<xs:complexType name="generic">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="key" type="code10"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute generic/@key

type	code10
facets	Kind  Value  Annotation minLength  1 maxLength  10
source	<xs:attribute name="key" type="code10"/>

complexType generic255-35

diagram
type	extension of xs:string
properties	base  xs:string
attributes	Name   Type   Use   Default   Fixed   Annotation key   Reference35Type
source	<xs:complexType name="generic255-35">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="key" type="Reference35Type"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute generic255-35/@key

type	Reference35Type
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:attribute name="key" type="Reference35Type"/>

complexType GpsCoordinatesType

diagram
children	latitude longitude
source	<xs:complexType name="GpsCoordinatesType">   <xs:sequence>     <xs:element name="latitude">       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:minInclusive value="-90.0"/>           <xs:maxInclusive value="90.0"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="longitude">       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:minInclusive value="-180.0"/>           <xs:maxInclusive value="180.0"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element GpsCoordinatesType/latitude

diagram
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation minInclusive  -90.0 maxInclusive  90.0
source	<xs:element name="latitude">   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:minInclusive value="-90.0"/>       <xs:maxInclusive value="90.0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element GpsCoordinatesType/longitude

diagram
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation minInclusive  -180.0 maxInclusive  180.0
source	<xs:element name="longitude">   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:minInclusive value="-180.0"/>       <xs:maxInclusive value="180.0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType InspectionType

diagram
type	extension of InspectionTypeContent
properties	base  InspectionTypeContent
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="InspectionType">   <xs:simpleContent>     <xs:extension base="InspectionTypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute InspectionType/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute InspectionType/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Interchange

diagram
children	CreationTime ExchangeNumber TestIndicator MessageCount Sender Recipient
used by	element  Deletion/Interchange
annotation	documentation Each Interchange starts with an element containing some meta information, followed by one or more messages. documentation Jeder Interchange beginnt mit einem Element, welches verschiedene Metadaten enthält und an das sich eine oder mehrere Nachrichten anschließen.
source	<xs:complexType name="Interchange">   <xs:annotation>     <xs:documentation xml:lang="EN">Each Interchange starts with an element containing some meta information, followed by one or more messages.</xs:documentation>     <xs:documentation xml:lang="DE">Jeder Interchange beginnt mit einem Element, welches verschiedene Metadaten enthält und an das sich eine oder mehrere Nachrichten anschließen.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="CreationTime" type="DocumentCreationTime">       <xs:annotation>         <xs:documentation xml:lang="EN"> Date and time of document creation. Format : 1999-05-31T13:20:00           </xs:documentation>         <xs:documentation xml:lang="DE"> Erstellungszeitpunkt des Nachrichtendokuments. Format : 1999-05-31T13:20:00           </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ExchangeNumber" type="DocumentExchangeNumber">       <xs:annotation>         <xs:documentation xml:lang="EN">A unique reference numberof an interchange.</xs:documentation>         <xs:documentation xml:lang="DE">Eindeutige Referenz eines Interchange.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TestIndicator" type="DocumentTestIndicator" minOccurs="0"/>     <xs:element name="MessageCount" type="MessageCount" minOccurs="0"/>     <xs:element name="Sender" type="Participant">       <xs:annotation>         <xs:documentation xml:lang="EN">This element contains information about the party who assembled and sent an interchange.</xs:documentation>         <xs:documentation xml:lang="EN">Enthält Informationen über die Partei, die einen Interchange zusammengestellt und versandt hat.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Recipient" type="Participant">       <xs:annotation>         <xs:documentation xml:lang="EN">Contains Information about the party receiving an Interchange. This party may forward the whole interchange or split it up into individual messages which are then processed further.</xs:documentation>         <xs:documentation xml:lang="DE">Enthält Informationen über den Empfänger eines Interchanges. Dieser Teilnehmer kann den Interchange als Ganzes weiterleiten, oder wieder in einzelne Nachrichten zerlegen, um diese dann weiterzuverarbeiten.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element Interchange/CreationTime

diagram
type	DocumentCreationTime
properties	content  complex
facets	Kind  Value  Annotation pattern  .+T[^Z+-]+
annotation	documentation Date and time of document creation. Format : 1999-05-31T13:20:00           documentation Erstellungszeitpunkt des Nachrichtendokuments. Format : 1999-05-31T13:20:00
source	<xs:element name="CreationTime" type="DocumentCreationTime">   <xs:annotation>     <xs:documentation xml:lang="EN"> Date and time of document creation. Format : 1999-05-31T13:20:00           </xs:documentation>     <xs:documentation xml:lang="DE"> Erstellungszeitpunkt des Nachrichtendokuments. Format : 1999-05-31T13:20:00           </xs:documentation>   </xs:annotation> </xs:element>

element Interchange/ExchangeNumber

diagram
type	DocumentExchangeNumber
properties	content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  14
annotation	documentation A unique reference numberof an interchange. documentation Eindeutige Referenz eines Interchange.
source	<xs:element name="ExchangeNumber" type="DocumentExchangeNumber">   <xs:annotation>     <xs:documentation xml:lang="EN">A unique reference numberof an interchange.</xs:documentation>     <xs:documentation xml:lang="DE">Eindeutige Referenz eines Interchange.</xs:documentation>   </xs:annotation> </xs:element>

element Interchange/TestIndicator

diagram
type	DocumentTestIndicator
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation pattern  [01]
source	<xs:element name="TestIndicator" type="DocumentTestIndicator" minOccurs="0"/>

element Interchange/MessageCount

diagram
type	MessageCount
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="MessageCount" type="MessageCount" minOccurs="0"/>

element Interchange/Sender

diagram
type	Participant
properties	content  complex
children	ParticipantCode Contact
annotation	documentation This element contains information about the party who assembled and sent an interchange. documentation Enthält Informationen über die Partei, die einen Interchange zusammengestellt und versandt hat.
source	<xs:element name="Sender" type="Participant">   <xs:annotation>     <xs:documentation xml:lang="EN">This element contains information about the party who assembled and sent an interchange.</xs:documentation>     <xs:documentation xml:lang="EN">Enthält Informationen über die Partei, die einen Interchange zusammengestellt und versandt hat.</xs:documentation>   </xs:annotation> </xs:element>

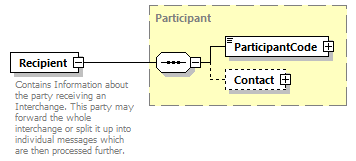

element Interchange/Recipient

diagram
type	Participant
properties	content  complex
children	ParticipantCode Contact
annotation	documentation Contains Information about the party receiving an Interchange. This party may forward the whole interchange or split it up into individual messages which are then processed further. documentation Enthält Informationen über den Empfänger eines Interchanges. Dieser Teilnehmer kann den Interchange als Ganzes weiterleiten, oder wieder in einzelne Nachrichten zerlegen, um diese dann weiterzuverarbeiten.
source	<xs:element name="Recipient" type="Participant">   <xs:annotation>     <xs:documentation xml:lang="EN">Contains Information about the party receiving an Interchange. This party may forward the whole interchange or split it up into individual messages which are then processed further.</xs:documentation>     <xs:documentation xml:lang="DE">Enthält Informationen über den Empfänger eines Interchanges. Dieser Teilnehmer kann den Interchange als Ganzes weiterleiten, oder wieder in einzelne Nachrichten zerlegen, um diese dann weiterzuverarbeiten.</xs:documentation>   </xs:annotation> </xs:element>

complexType Legitimation

diagram
children	TruckerID TruckerName VehicleRegistration TrailerRegistration
annotation	documentation transport authorization-data documentation Daten für die Prüfung der Tansportberechtigung
source	<xs:complexType name="Legitimation">   <xs:annotation>     <xs:documentation xml:lang="EN">transport authorization-data</xs:documentation>     <xs:documentation xml:lang="DE">Daten für die Prüfung der Tansportberechtigung</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="TruckerID" type="TruckerID" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">TruckerID of the driver carrying out the transport</xs:documentation>         <xs:documentation xml:lang="DE">TruckerID des ausführenden Fahrers</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TruckerName" type="Name" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">Name of the driver carrying out the transport</xs:documentation>         <xs:documentation xml:lang="DE">Name des ausführenden Fahrers</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="VehicleRegistration" type="LicensePlateEUFullRange" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">vehicle licence number of the traction engine</xs:documentation>         <xs:documentation xml:lang="DE">Polizeiliches Kennzeichen der Zugmaschine</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TrailerRegistration" type="LicensePlateEUFullRange" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">vehicle licence number of the trailer</xs:documentation>         <xs:documentation xml:lang="DE">Polizeiliches Kennzeichen des Anhängers</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element Legitimation/TruckerID

diagram
type	TruckerID
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  255 pattern  [^\s]*
attributes	Name   Type   Use   Default   Fixed   Annotation IDP   derived by: xs:string            documentation Specification of the identity provider according to the IDPL code list documentation Angabe des Identity Providers gemäß der Codeliste IDPL
annotation	documentation TruckerID of the driver carrying out the transport documentation TruckerID des ausführenden Fahrers
source	<xs:element name="TruckerID" type="TruckerID" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">TruckerID of the driver carrying out the transport</xs:documentation>     <xs:documentation xml:lang="DE">TruckerID des ausführenden Fahrers</xs:documentation>   </xs:annotation> </xs:element>

element Legitimation/TruckerName

diagram
type	Name
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation Name of the driver carrying out the transport documentation Name des ausführenden Fahrers
source	<xs:element name="TruckerName" type="Name" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">Name of the driver carrying out the transport</xs:documentation>     <xs:documentation xml:lang="DE">Name des ausführenden Fahrers</xs:documentation>   </xs:annotation> </xs:element>

element Legitimation/VehicleRegistration

diagram
type	LicensePlateEUFullRange
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation pattern  [A-ZÄÖÜ0-9\- ]{1,12}
annotation	documentation vehicle licence number of the traction engine documentation Polizeiliches Kennzeichen der Zugmaschine
source	<xs:element name="VehicleRegistration" type="LicensePlateEUFullRange" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">vehicle licence number of the traction engine</xs:documentation>     <xs:documentation xml:lang="DE">Polizeiliches Kennzeichen der Zugmaschine</xs:documentation>   </xs:annotation> </xs:element>

element Legitimation/TrailerRegistration

diagram
type	LicensePlateEUFullRange
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation pattern  [A-ZÄÖÜ0-9\- ]{1,12}
annotation	documentation vehicle licence number of the trailer documentation Polizeiliches Kennzeichen des Anhängers
source	<xs:element name="TrailerRegistration" type="LicensePlateEUFullRange" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">vehicle licence number of the trailer</xs:documentation>     <xs:documentation xml:lang="DE">Polizeiliches Kennzeichen des Anhängers</xs:documentation>   </xs:annotation> </xs:element>

complexType LinearMeasureType

diagram
type	extension of LinearMeasureTypeContent
properties	base  LinearMeasureTypeContent
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999
attributes	Name   Type   Use   Default   Fixed   Annotation unitCode   xs:string   required
source	<xs:complexType name="LinearMeasureType">   <xs:simpleContent>     <xs:extension base="LinearMeasureTypeContent">       <xs:attribute name="unitCode" type="xs:string" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute LinearMeasureType/@unitCode

type	xs:string
properties	use  required
source	<xs:attribute name="unitCode" type="xs:string" use="required"/>

complexType LocationType

diagram
children	LocationType LocationIdentification LocationName SubordinateLocation
source	<xs:complexType name="LocationType">   <xs:sequence>     <xs:element name="LocationType" type="LocationTypeCode" minOccurs="0"/>     <xs:element name="LocationIdentification" type="LocationIdentificationTypeContent" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">UNLocode</xs:documentation>         <xs:documentation xml:lang="DE">UNLocode</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LocationName" type="NameType" minOccurs="0"/>     <xs:element name="SubordinateLocation" type="SubordinateLocation" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

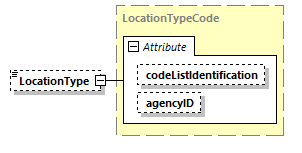

element LocationType/LocationType

diagram
type	LocationTypeCode
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="LocationType" type="LocationTypeCode" minOccurs="0"/>

element LocationType/LocationIdentification

diagram
type	LocationIdentificationTypeContent
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation length  5 pattern  [A-Z]{2}[A-Z0-9]{3}
annotation	documentation UNLocode documentation UNLocode
source	<xs:element name="LocationIdentification" type="LocationIdentificationTypeContent" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">UNLocode</xs:documentation>     <xs:documentation xml:lang="DE">UNLocode</xs:documentation>   </xs:annotation> </xs:element>

element LocationType/LocationName

diagram
type	NameType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string      DE
source	<xs:element name="LocationName" type="NameType" minOccurs="0"/>

element LocationType/SubordinateLocation

diagram
type	SubordinateLocation
properties	minOcc  0 maxOcc  unbounded content  complex
children	LocationIdentification LocationName LocationType PlaceOfLoading
source	<xs:element name="SubordinateLocation" type="SubordinateLocation" minOccurs="0" maxOccurs="unbounded"/>

complexType LocationTypeCode

diagram
type	extension of LocationTypeContent
properties	base  LocationTypeContent
used by	elements  LocationType/LocationType SubordinateLocation/LocationType
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="LocationTypeCode">   <xs:simpleContent>     <xs:extension base="LocationTypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute LocationTypeCode/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute LocationTypeCode/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType Message

diagram
children	MessageHeader
used by	complexType  DeletionMessage
attributes	Name   Type   Use   Default   Fixed   Annotation messageType   xs:string            messageVersionID   xs:string   required         documentation version of the messagedefinition that is used for this message documentation Version der Nachrichtendefinition, auf der eine Nachricht basiert
annotation	documentation Each message sent within an interchange is based on the Message element. The Message element provides the meta information of an individual message; for a concrete implementation it as to be extended with elements containing the actual information. documentation Jede Nachricht innerhalb eines Interchange basiert auf dem Message element. Dieses Element beinhaltet die Meta-Informationen zu einer Nachricht; für eine konkrete Implementation muss es um weitere Elemente mit den eigentlichen Inhalten erweitert werden.
source	<xs:complexType name="Message">   <xs:annotation>     <xs:documentation xml:lang="EN">Each message sent within an interchange is based on the Message element. The Message element provides the meta information of an individual message; for a concrete implementation it as to be extended with elements containing the actual information.</xs:documentation>     <xs:documentation xml:lang="DE">Jede Nachricht innerhalb eines Interchange basiert auf dem Message element. Dieses Element beinhaltet die Meta-Informationen zu einer Nachricht; für eine konkrete Implementation muss es um weitere Elemente mit den eigentlichen Inhalten erweitert werden.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MessageHeader" type="MessageHeader"/>   </xs:sequence>   <xs:attribute name="messageType" type="xs:string"/>   <xs:attribute name="messageVersionID" type="xs:string" use="required">     <xs:annotation>       <xs:documentation xml:lang="EN">version of the messagedefinition that is used for this message</xs:documentation>       <xs:documentation xml:lang="DE">Version der Nachrichtendefinition, auf der eine Nachricht basiert</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute Message/@messageType

type	xs:string
source	<xs:attribute name="messageType" type="xs:string"/>

attribute Message/@messageVersionID

type	xs:string
properties	use  required
annotation	documentation version of the messagedefinition that is used for this message documentation Version der Nachrichtendefinition, auf der eine Nachricht basiert
source	<xs:attribute name="messageVersionID" type="xs:string" use="required">   <xs:annotation>     <xs:documentation xml:lang="EN">version of the messagedefinition that is used for this message</xs:documentation>     <xs:documentation xml:lang="DE">Version der Nachrichtendefinition, auf der eine Nachricht basiert</xs:documentation>   </xs:annotation> </xs:attribute>

element Message/MessageHeader

diagram
type	MessageHeader
properties	content  complex
children	MessageFunction MessageReferenceNumber PreviousMessageReferenceNumber MessageSender MessageRecipient AdditionalValue
source	<xs:element name="MessageHeader" type="MessageHeader"/>

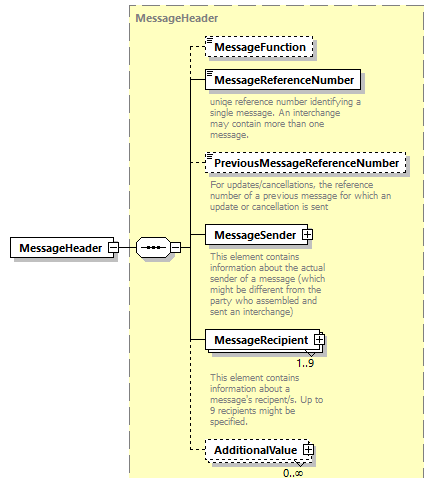

complexType MessageHeader

diagram
children	MessageFunction MessageReferenceNumber PreviousMessageReferenceNumber MessageSender MessageRecipient AdditionalValue
used by	element  Message/MessageHeader
annotation	documentation The message header contains meta information about an actual message which is transmitted as part of an interchange. documentation Der Message Header enthält Metainformationen zu einer einzelnen Nachricht, die als Teil eines Interchanges übertragen wird.
source	<xs:complexType name="MessageHeader">   <xs:annotation>     <xs:documentation xml:lang="EN">The message header contains meta information about an actual message which is transmitted as part of an interchange.</xs:documentation>     <xs:documentation xml:lang="DE">Der Message Header enthält Metainformationen zu einer einzelnen Nachricht, die als Teil eines Interchanges übertragen wird.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MessageFunction" type="MessageFunction" minOccurs="0"/>     <xs:element name="MessageReferenceNumber" type="MessageReferenceNumber">       <xs:annotation>         <xs:documentation xml:lang="EN">uniqe reference number identifying a single message. An interchange may contain more than one message.</xs:documentation>         <xs:documentation xml:lang="DE">Eindeutige Referenz zur Identifzierung einer Nachricht. Ein Interchange bzw. Übertragungsdatei kann mehrere Nachrichten enthalten.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PreviousMessageReferenceNumber" type="MessageReferenceNumber" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">For updates/cancellations, the reference number of a previous message for which an update or cancellation is sent</xs:documentation>         <xs:documentation xml:lang="DE">Für Updates/Stornierungen, die Referenz einer vorangegangenen Nachricht, auf die sich ein Update/Storno bezieht</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MessageSender" type="Participant">       <xs:annotation>         <xs:documentation xml:lang="EN">This element contains information about the actual sender of a message (which might be different from the party who assembled and sent an interchange)</xs:documentation>         <xs:documentation xml:lang="DE">Dieses Element enthält Informationen über den tatsächlichen Absender einer Nachricht (welcher sich vom Absender des Interchange unterscheiden kann)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MessageRecipient" type="Participant">       <xs:annotation>         <xs:documentation xml:lang="EN">This element contains information about a message's recipent.</xs:documentation>         <xs:documentation xml:lang="DE">Dieses Element enthält Informationen über den Empfänger einer Nachricht.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="AdditionalValue" type="AdditionalValue" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

element MessageHeader/MessageFunction

diagram
type	MessageFunction
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  7
source	<xs:element name="MessageFunction" type="MessageFunction" minOccurs="0"/>

element MessageHeader/MessageReferenceNumber

diagram
type	MessageReferenceNumber
properties	content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation uniqe reference number identifying a single message. An interchange may contain more than one message. documentation Eindeutige Referenz zur Identifzierung einer Nachricht. Ein Interchange bzw. Übertragungsdatei kann mehrere Nachrichten enthalten.
source	<xs:element name="MessageReferenceNumber" type="MessageReferenceNumber">   <xs:annotation>     <xs:documentation xml:lang="EN">uniqe reference number identifying a single message. An interchange may contain more than one message.</xs:documentation>     <xs:documentation xml:lang="DE">Eindeutige Referenz zur Identifzierung einer Nachricht. Ein Interchange bzw. Übertragungsdatei kann mehrere Nachrichten enthalten.</xs:documentation>   </xs:annotation> </xs:element>

element MessageHeader/PreviousMessageReferenceNumber

diagram
type	MessageReferenceNumber
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation For updates/cancellations, the reference number of a previous message for which an update or cancellation is sent documentation Für Updates/Stornierungen, die Referenz einer vorangegangenen Nachricht, auf die sich ein Update/Storno bezieht
source	<xs:element name="PreviousMessageReferenceNumber" type="MessageReferenceNumber" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">For updates/cancellations, the reference number of a previous message for which an update or cancellation is sent</xs:documentation>     <xs:documentation xml:lang="DE">Für Updates/Stornierungen, die Referenz einer vorangegangenen Nachricht, auf die sich ein Update/Storno bezieht</xs:documentation>   </xs:annotation> </xs:element>

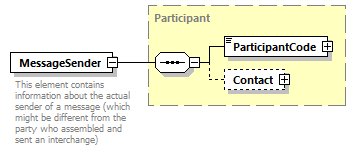

element MessageHeader/MessageSender

diagram
type	Participant
properties	content  complex
children	ParticipantCode Contact
annotation	documentation This element contains information about the actual sender of a message (which might be different from the party who assembled and sent an interchange) documentation Dieses Element enthält Informationen über den tatsächlichen Absender einer Nachricht (welcher sich vom Absender des Interchange unterscheiden kann)
source	<xs:element name="MessageSender" type="Participant">   <xs:annotation>     <xs:documentation xml:lang="EN">This element contains information about the actual sender of a message (which might be different from the party who assembled and sent an interchange)</xs:documentation>     <xs:documentation xml:lang="DE">Dieses Element enthält Informationen über den tatsächlichen Absender einer Nachricht (welcher sich vom Absender des Interchange unterscheiden kann)</xs:documentation>   </xs:annotation> </xs:element>

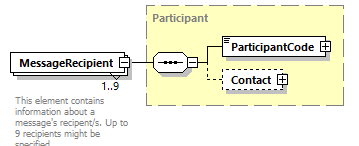

element MessageHeader/MessageRecipient

diagram
type	Participant
properties	content  complex
children	ParticipantCode Contact
annotation	documentation This element contains information about a message's recipent. documentation Dieses Element enthält Informationen über den Empfänger einer Nachricht.
source	<xs:element name="MessageRecipient" type="Participant">   <xs:annotation>     <xs:documentation xml:lang="EN">This element contains information about a message's recipent.</xs:documentation>     <xs:documentation xml:lang="DE">Dieses Element enthält Informationen über den Empfänger einer Nachricht.</xs:documentation>   </xs:annotation> </xs:element>

element MessageHeader/AdditionalValue

diagram
type	AdditionalValue
properties	minOcc  0 maxOcc  unbounded content  complex
children	Name Value
source	<xs:element name="AdditionalValue" type="AdditionalValue" minOccurs="0" maxOccurs="unbounded"/>

complexType NameType

diagram
type	extension of xs:string
properties	base  xs:string
used by	elements  LocationType/LocationName SubordinateLocation/LocationName SubordinateLocation/PlaceOfLoading/Name
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string      DE
source	<xs:complexType name="NameType">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="languageLocale" type="xs:string" default="DE"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute NameType/@languageLocale

type	xs:string
properties	default  DE
source	<xs:attribute name="languageLocale" type="xs:string" default="DE"/>

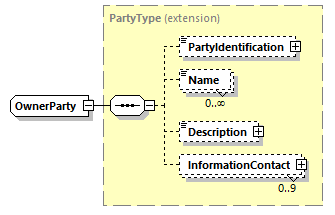

complexType OwnerParty

diagram
type	extension of PartyType
properties	base  PartyType
children	PartyIdentification Name Description InformationContact
used by	element  TransportMeans/TransportMeansOwner
source	<xs:complexType name="OwnerParty">   <xs:complexContent>     <xs:extension base="PartyType"/>   </xs:complexContent> </xs:complexType>

complexType Participant

diagram
children	ParticipantCode Contact
used by	elements  MessageHeader/MessageRecipient MessageHeader/MessageSender Interchange/Recipient Interchange/Sender
source	<xs:complexType name="Participant">   <xs:sequence>     <xs:element name="ParticipantCode" type="ParticipantCode"/>     <xs:element name="Contact" type="Contact" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element Participant/ParticipantCode

diagram
type	ParticipantCode
properties	content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  17 pattern  [A-Z0-9]+
attributes	Name   Type   Use   Default   Fixed   Annotation agencyID   xs:string      DAKOSY
source	<xs:element name="ParticipantCode" type="ParticipantCode"/>

element Participant/Contact

diagram
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Name Telephone Fax Email
source	<xs:element name="Contact" type="Contact" minOccurs="0"/>

complexType ParticipantCode

diagram
type	extension of ParticipantCodeType
properties	base  ParticipantCodeType
used by	element  Participant/ParticipantCode
facets	Kind  Value  Annotation minLength  1 maxLength  17 pattern  [A-Z0-9]+
attributes	Name   Type   Use   Default   Fixed   Annotation agencyID   xs:string      DAKOSY
annotation	documentation participant EDI code documentation EDI-Code des Teilnehmers
source	<xs:complexType name="ParticipantCode">   <xs:annotation>     <xs:documentation xml:lang="EN">participant EDI code</xs:documentation>     <xs:documentation xml:lang="DE">EDI-Code des Teilnehmers</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="ParticipantCodeType">       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ParticipantCode/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType ParticipantInformationType

diagram
children	Company TruckerID Reference
used by	elements  DeletionMessage/ParticipantInformation SlotStatusHeaderType/ParticipantInformation
source	<xs:complexType name="ParticipantInformationType">   <xs:sequence>     <xs:element name="Company" type="TransportCompanyType"/>     <xs:element name="TruckerID" type="TruckerID" minOccurs="0"/>     <xs:element name="Reference" type="ReferenceType"/>   </xs:sequence> </xs:complexType>

element ParticipantInformationType/Company

diagram

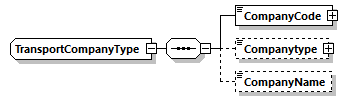

type	TransportCompanyType
properties	content  complex

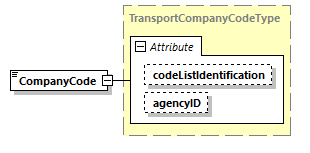

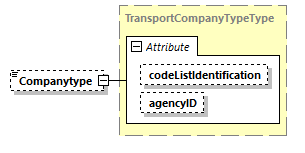

children	CompanyCode Companytype CompanyName
source	<xs:element name="Company" type="TransportCompanyType"/>

element ParticipantInformationType/TruckerID

diagram
type	TruckerID
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  255 pattern  [^\s]*
attributes	Name   Type   Use   Default   Fixed   Annotation IDP   derived by: xs:string            documentation Specification of the identity provider according to the IDPL code list documentation Angabe des Identity Providers gemäß der Codeliste IDPL
source	<xs:element name="TruckerID" type="TruckerID" minOccurs="0"/>

element ParticipantInformationType/Reference

diagram
type	ReferenceType
properties	content  complex
children	ReferenceID TypeCode Position
source	<xs:element name="Reference" type="ReferenceType"/>

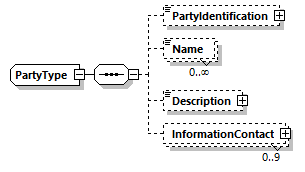

complexType PartyType

diagram
children	PartyIdentification Name Description InformationContact
used by	complexType  OwnerParty
source	<xs:complexType name="PartyType">   <xs:sequence>     <xs:element name="PartyIdentification" type="Code17Type" minOccurs="0"/>     <xs:element name="Name" type="Name2" minOccurs="0" maxOccurs="unbounded"/>     <xs:element name="Description" minOccurs="0">       <xs:complexType>         <xs:simpleContent>           <xs:restriction base="TextType"/>         </xs:simpleContent>       </xs:complexType>     </xs:element>     <xs:element name="InformationContact" type="Contact" minOccurs="0" maxOccurs="9"/>   </xs:sequence> </xs:complexType>

element PartyType/PartyIdentification

diagram
type	Code17Type
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="PartyIdentification" type="Code17Type" minOccurs="0"/>

element PartyType/Name

diagram
type	Name2
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation maxLength  70
source	<xs:element name="Name" type="Name2" minOccurs="0" maxOccurs="unbounded"/>

element PartyType/Description

diagram
type	restriction of TextType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string   optional   DE
source	<xs:element name="Description" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:restriction base="TextType"/>     </xs:simpleContent>   </xs:complexType> </xs:element>

element PartyType/InformationContact

diagram
type	Contact
properties	minOcc  0 maxOcc  9 content  complex
children	Name Telephone Fax Email
source	<xs:element name="InformationContact" type="Contact" minOccurs="0" maxOccurs="9"/>

complexType QrType

diagram
type	extension of Text255TypeContent
properties	base  Text255TypeContent
facets	Kind  Value  Annotation minLength  1 maxLength  255
attributes	Name   Type   Use   Default   Fixed   Annotation type   code10   required
source	<xs:complexType name="QrType">   <xs:simpleContent>     <xs:extension base="Text255TypeContent">       <xs:attribute name="type" type="code10" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute QrType/@type

type	code10
properties	use  required
facets	Kind  Value  Annotation minLength  1 maxLength  10
source	<xs:attribute name="type" type="code10" use="required"/>

complexType ReferenceType

diagram
children	ReferenceID TypeCode Position
used by	element  ParticipantInformationType/Reference
annotation	documentation To specify miscellaneous references; the type of reference is qualified with TypeCode documentation Allgemeiner Referenztyp. Wird duch den TypeCode konkretisiert.
source	<xs:complexType name="ReferenceType">   <xs:annotation>     <xs:documentation xml:lang="EN">To specify miscellaneous references; the type of reference is qualified with TypeCode</xs:documentation>     <xs:documentation xml:lang="DE">Allgemeiner Referenztyp. Wird duch den TypeCode konkretisiert.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ReferenceID">       <xs:annotation>         <xs:documentation xml:lang="EN">reference identifier</xs:documentation>         <xs:documentation xml:lang="DE">Referenz, eindeutiger fachlicher Schlüssel</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:simpleContent>           <xs:extension base="ReferenceIDType">             <xs:attribute name="version" type="xs:positiveInteger" use="required"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>     <xs:element name="TypeCode" type="ReferenceTypeCode" minOccurs="0"/>     <xs:element name="Position" type="CountType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">load-position within referenced message</xs:documentation>         <xs:documentation xml:lang="DE">Ladeeinheitposition innerhalb der Referenz</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ReferenceType/ReferenceID

diagram
type	extension of ReferenceIDType
properties	content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  35 pattern  [A-Z0-9_/\.-]+
attributes	Name   Type   Use   Default   Fixed   Annotation version   xs:positiveInteger   required
annotation	documentation reference identifier documentation Referenz, eindeutiger fachlicher Schlüssel
source	<xs:element name="ReferenceID">   <xs:annotation>     <xs:documentation xml:lang="EN">reference identifier</xs:documentation>     <xs:documentation xml:lang="DE">Referenz, eindeutiger fachlicher Schlüssel</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:simpleContent>       <xs:extension base="ReferenceIDType">         <xs:attribute name="version" type="xs:positiveInteger" use="required"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute ReferenceType/ReferenceID/@version

type	xs:positiveInteger
properties	use  required
source	<xs:attribute name="version" type="xs:positiveInteger" use="required"/>

element ReferenceType/TypeCode

diagram
type	ReferenceTypeCode
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="TypeCode" type="ReferenceTypeCode" minOccurs="0"/>

element ReferenceType/Position

diagram
type	CountType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation load-position within referenced message documentation Ladeeinheitposition innerhalb der Referenz
source	<xs:element name="Position" type="CountType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">load-position within referenced message</xs:documentation>     <xs:documentation xml:lang="DE">Ladeeinheitposition innerhalb der Referenz</xs:documentation>   </xs:annotation> </xs:element>

complexType ReferenceTypeCode

diagram
type	extension of ReferenceTypeCodeContent
properties	base  ReferenceTypeCodeContent
used by	element  ReferenceType/TypeCode
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation spezification of the reference type documentation Art der Referenz, kodiert
source	<xs:complexType name="ReferenceTypeCode">   <xs:annotation>     <xs:documentation xml:lang="EN">spezification of the reference type</xs:documentation>     <xs:documentation xml:lang="DE">Art der Referenz, kodiert</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="ReferenceTypeCodeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ReferenceTypeCode/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute ReferenceTypeCode/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

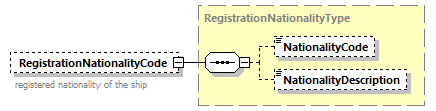

complexType RegistrationNationalityType

diagram
children	NationalityCode NationalityDescription
used by	element  TransportMeans/RegistrationNationalityCode
source	<xs:complexType name="RegistrationNationalityType">   <xs:sequence>     <xs:element name="NationalityCode" type="RegistrationNationality" minOccurs="0"/>     <xs:element name="NationalityDescription" type="CountryDescription" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element RegistrationNationalityType/NationalityCode

diagram
type	RegistrationNationality
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="NationalityCode" type="RegistrationNationality" minOccurs="0"/>

element RegistrationNationalityType/NationalityDescription

diagram
type	CountryDescription
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  70
source	<xs:element name="NationalityDescription" type="CountryDescription" minOccurs="0"/>

complexType RegistrationNumberCodeType

diagram
type	extension of RegistrationNumberCodeTypeContent
properties	base  RegistrationNumberCodeTypeContent
used by	element  RegistrationNumberType/Code
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="RegistrationNumberCodeType">   <xs:simpleContent>     <xs:extension base="RegistrationNumberCodeTypeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute RegistrationNumberCodeType/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute RegistrationNumberCodeType/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

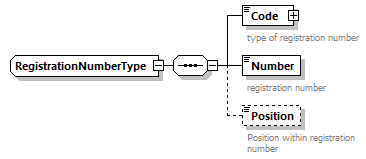

complexType RegistrationNumberType

diagram
children	Code Number Position
source	<xs:complexType name="RegistrationNumberType">   <xs:sequence>     <xs:element name="Code" type="RegistrationNumberCodeType">       <xs:annotation>         <xs:documentation xml:lang="EN">type of registration number</xs:documentation>         <xs:documentation xml:lang="DE">Art der Registriernummer</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Number" type="RegistrationNumberTypeContent">       <xs:annotation>         <xs:documentation xml:lang="EN">registration number</xs:documentation>         <xs:documentation xml:lang="DE">Registriernummer</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Position" type="RegistrationNumberTypePosition" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">Position within registration number</xs:documentation>         <xs:documentation xml:lang="DE">Position innerhalb der Registriernummer</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

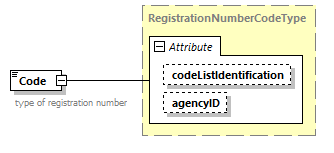

element RegistrationNumberType/Code

diagram
type	RegistrationNumberCodeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation type of registration number documentation Art der Registriernummer
source	<xs:element name="Code" type="RegistrationNumberCodeType">   <xs:annotation>     <xs:documentation xml:lang="EN">type of registration number</xs:documentation>     <xs:documentation xml:lang="DE">Art der Registriernummer</xs:documentation>   </xs:annotation> </xs:element>

element RegistrationNumberType/Number

diagram
type	RegistrationNumberTypeContent
properties	content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation registration number documentation Registriernummer
source	<xs:element name="Number" type="RegistrationNumberTypeContent">   <xs:annotation>     <xs:documentation xml:lang="EN">registration number</xs:documentation>     <xs:documentation xml:lang="DE">Registriernummer</xs:documentation>   </xs:annotation> </xs:element>

element RegistrationNumberType/Position

diagram
type	RegistrationNumberTypePosition
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999
annotation	documentation Position within registration number documentation Position innerhalb der Registriernummer
source	<xs:element name="Position" type="RegistrationNumberTypePosition" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">Position within registration number</xs:documentation>     <xs:documentation xml:lang="DE">Position innerhalb der Registriernummer</xs:documentation>   </xs:annotation> </xs:element>

complexType SlotStatusDetailsType

diagram
children	SlotStatusDetails
source	<xs:complexType name="SlotStatusDetailsType">   <xs:sequence>     <xs:element name="SlotStatusDetails" maxOccurs="unbounded">       <xs:complexType>         <xs:sequence>           <xs:element name="SlotBegin" type="DateTimeType"/>           <xs:element name="SlotEnd" type="DateTimeType"/>           <xs:element name="SlotAvailability">             <xs:annotation>               <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>               <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>             </xs:annotation>             <xs:simpleType>               <xs:restriction base="xs:decimal">                 <xs:minInclusive value="0"/>                 <xs:maxInclusive value="3"/>                 <xs:totalDigits value="1"/>                 <xs:fractionDigits value="0"/>               </xs:restriction>             </xs:simpleType>           </xs:element>           <xs:element name="Prio2Processing" type="xs:boolean">             <xs:annotation>               <xs:documentation xml:lang="EN">Indicator if Prio2-processing is effective within the slot-time.</xs:documentation>               <xs:documentation xml:lang="DE">Indikator, ob Prio2 zu dieser Zeit abgefertigt wird.</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="SlotRestrictionRevoked" type="xs:boolean">             <xs:annotation>               <xs:documentation xml:lang="EN">Indicator that the time-restriction has been revoked for this Slot</xs:documentation>               <xs:documentation xml:lang="DE">Indikator für die Aufhebung der Zeitfensterbindung für diesen Slot</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="SpecialSlot" minOccurs="0">             <xs:complexType>               <xs:sequence>                 <xs:element name="SpecialSlotDetails" maxOccurs="unbounded">                   <xs:complexType>                     <xs:sequence>                       <xs:element name="SlotClass" type="Code17Type"/>                       <xs:element name="SlotAvailability">                         <xs:annotation>                           <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>                           <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>                         </xs:annotation>                         <xs:simpleType>                           <xs:restriction base="xs:decimal">                             <xs:minInclusive value="0"/>                             <xs:maxInclusive value="3"/>                             <xs:totalDigits value="1"/>                             <xs:fractionDigits value="0"/>                           </xs:restriction>                         </xs:simpleType>                       </xs:element>                     </xs:sequence>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element SlotStatusDetailsType/SlotStatusDetails

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	SlotBegin SlotEnd SlotAvailability Prio2Processing SlotRestrictionRevoked SpecialSlot
source	<xs:element name="SlotStatusDetails" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="SlotBegin" type="DateTimeType"/>       <xs:element name="SlotEnd" type="DateTimeType"/>       <xs:element name="SlotAvailability">         <xs:annotation>           <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>           <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>         </xs:annotation>         <xs:simpleType>           <xs:restriction base="xs:decimal">             <xs:minInclusive value="0"/>             <xs:maxInclusive value="3"/>             <xs:totalDigits value="1"/>             <xs:fractionDigits value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="Prio2Processing" type="xs:boolean">         <xs:annotation>           <xs:documentation xml:lang="EN">Indicator if Prio2-processing is effective within the slot-time.</xs:documentation>           <xs:documentation xml:lang="DE">Indikator, ob Prio2 zu dieser Zeit abgefertigt wird.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="SlotRestrictionRevoked" type="xs:boolean">         <xs:annotation>           <xs:documentation xml:lang="EN">Indicator that the time-restriction has been revoked for this Slot</xs:documentation>           <xs:documentation xml:lang="DE">Indikator für die Aufhebung der Zeitfensterbindung für diesen Slot</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="SpecialSlot" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="SpecialSlotDetails" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="SlotClass" type="Code17Type"/>                   <xs:element name="SlotAvailability">                     <xs:annotation>                       <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>                       <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>                     </xs:annotation>                     <xs:simpleType>                       <xs:restriction base="xs:decimal">                         <xs:minInclusive value="0"/>                         <xs:maxInclusive value="3"/>                         <xs:totalDigits value="1"/>                         <xs:fractionDigits value="0"/>                       </xs:restriction>                     </xs:simpleType>                   </xs:element>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element SlotStatusDetailsType/SlotStatusDetails/SlotBegin

diagram
type	DateTimeType
properties	content  complex
children	DateTime Format
source	<xs:element name="SlotBegin" type="DateTimeType"/>

element SlotStatusDetailsType/SlotStatusDetails/SlotEnd

diagram
type	DateTimeType
properties	content  complex
children	DateTime Format
source	<xs:element name="SlotEnd" type="DateTimeType"/>

element SlotStatusDetailsType/SlotStatusDetails/SlotAvailability

diagram
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3 totalDigits  1 fractionDigits  0
annotation	documentation 0 - free 1 - almost occupied 2 - fully occupied 3 - blocked documentation 0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt
source	<xs:element name="SlotAvailability">   <xs:annotation>     <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>     <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>       <xs:fractionDigits value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SlotStatusDetailsType/SlotStatusDetails/Prio2Processing

diagram
type	xs:boolean
properties	content  simple
annotation	documentation Indicator if Prio2-processing is effective within the slot-time. documentation Indikator, ob Prio2 zu dieser Zeit abgefertigt wird.
source	<xs:element name="Prio2Processing" type="xs:boolean">   <xs:annotation>     <xs:documentation xml:lang="EN">Indicator if Prio2-processing is effective within the slot-time.</xs:documentation>     <xs:documentation xml:lang="DE">Indikator, ob Prio2 zu dieser Zeit abgefertigt wird.</xs:documentation>   </xs:annotation> </xs:element>

element SlotStatusDetailsType/SlotStatusDetails/SlotRestrictionRevoked

diagram
type	xs:boolean
properties	content  simple
annotation	documentation Indicator that the time-restriction has been revoked for this Slot documentation Indikator für die Aufhebung der Zeitfensterbindung für diesen Slot
source	<xs:element name="SlotRestrictionRevoked" type="xs:boolean">   <xs:annotation>     <xs:documentation xml:lang="EN">Indicator that the time-restriction has been revoked for this Slot</xs:documentation>     <xs:documentation xml:lang="DE">Indikator für die Aufhebung der Zeitfensterbindung für diesen Slot</xs:documentation>   </xs:annotation> </xs:element>

element SlotStatusDetailsType/SlotStatusDetails/SpecialSlot

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	SpecialSlotDetails
source	<xs:element name="SpecialSlot" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="SpecialSlotDetails" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="SlotClass" type="Code17Type"/>             <xs:element name="SlotAvailability">               <xs:annotation>                 <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>                 <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>               </xs:annotation>               <xs:simpleType>                 <xs:restriction base="xs:decimal">                   <xs:minInclusive value="0"/>                   <xs:maxInclusive value="3"/>                   <xs:totalDigits value="1"/>                   <xs:fractionDigits value="0"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

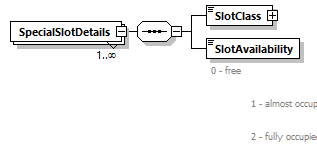

element SlotStatusDetailsType/SlotStatusDetails/SpecialSlot/SpecialSlotDetails

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	SlotClass SlotAvailability
source	<xs:element name="SpecialSlotDetails" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="SlotClass" type="Code17Type"/>       <xs:element name="SlotAvailability">         <xs:annotation>           <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>           <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>         </xs:annotation>         <xs:simpleType>           <xs:restriction base="xs:decimal">             <xs:minInclusive value="0"/>             <xs:maxInclusive value="3"/>             <xs:totalDigits value="1"/>             <xs:fractionDigits value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element SlotStatusDetailsType/SlotStatusDetails/SpecialSlot/SpecialSlotDetails/SlotClass

diagram
type	Code17Type
properties	content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="SlotClass" type="Code17Type"/>

element SlotStatusDetailsType/SlotStatusDetails/SpecialSlot/SpecialSlotDetails/SlotAvailability

diagram
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  3 totalDigits  1 fractionDigits  0
annotation	documentation 0 - free 1 - almost occupied 2 - fully occupied 3 - blocked documentation 0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt
source	<xs:element name="SlotAvailability">   <xs:annotation>     <xs:documentation xml:lang="EN">0 - free 1 - almost occupied 2 - fully occupied 3 - blocked </xs:documentation>     <xs:documentation xml:lang="DE">0 - frei 1 - beinahe belegt 2 - ausgebucht 3 - gesperrt </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3"/>       <xs:totalDigits value="1"/>       <xs:fractionDigits value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType SlotStatusHeaderType

diagram
children	ParticipantInformation TerminalLocation SlotStatusTime
source	<xs:complexType name="SlotStatusHeaderType">   <xs:sequence>     <xs:element name="ParticipantInformation" type="ParticipantInformationType">       <xs:annotation>         <xs:documentation xml:lang="EN">Information about the participating transport company</xs:documentation>         <xs:documentation xml:lang="DE">Daten des beteiligten Transportunternehmers</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TerminalLocation" type="TerminalLocationType">       <xs:annotation>         <xs:documentation xml:lang="EN">Specifies the location of the terminal and the place of loading (in Bremen, Hamburg or Luebeck)</xs:documentation>         <xs:documentation xml:lang="DE">Beteiligtes Terminal / Hafen (z.B. Bremen, Luebeck oder Hamburg)</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SlotStatusTime" type="DateTimeType">       <xs:annotation>         <xs:documentation xml:lang="EN">Time of the SlotStatusData</xs:documentation>         <xs:documentation xml:lang="DE">Zeitpunkt der SlotDetail-Informationen</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element SlotStatusHeaderType/ParticipantInformation

diagram
type	ParticipantInformationType
properties	content  complex
children	Company TruckerID Reference
annotation	documentation Information about the participating transport company documentation Daten des beteiligten Transportunternehmers
source	<xs:element name="ParticipantInformation" type="ParticipantInformationType">   <xs:annotation>     <xs:documentation xml:lang="EN">Information about the participating transport company</xs:documentation>     <xs:documentation xml:lang="DE">Daten des beteiligten Transportunternehmers</xs:documentation>   </xs:annotation> </xs:element>

element SlotStatusHeaderType/TerminalLocation

diagram
type	TerminalLocationType
properties	content  complex
children	LocationIdentification LocationName LocationType PlaceOfLoading
annotation	documentation Specifies the location of the terminal and the place of loading (in Bremen, Hamburg or Luebeck) documentation Beteiligtes Terminal / Hafen (z.B. Bremen, Luebeck oder Hamburg)
source	<xs:element name="TerminalLocation" type="TerminalLocationType">   <xs:annotation>     <xs:documentation xml:lang="EN">Specifies the location of the terminal and the place of loading (in Bremen, Hamburg or Luebeck)</xs:documentation>     <xs:documentation xml:lang="DE">Beteiligtes Terminal / Hafen (z.B. Bremen, Luebeck oder Hamburg)</xs:documentation>   </xs:annotation> </xs:element>

element SlotStatusHeaderType/SlotStatusTime

diagram
type	DateTimeType
properties	content  complex
children	DateTime Format
annotation	documentation Time of the SlotStatusData documentation Zeitpunkt der SlotDetail-Informationen
source	<xs:element name="SlotStatusTime" type="DateTimeType">   <xs:annotation>     <xs:documentation xml:lang="EN">Time of the SlotStatusData</xs:documentation>     <xs:documentation xml:lang="DE">Zeitpunkt der SlotDetail-Informationen</xs:documentation>   </xs:annotation> </xs:element>

complexType SubordinateLocation

diagram
children	LocationIdentification LocationName LocationType PlaceOfLoading
used by	element  LocationType/SubordinateLocation complexType  TerminalLocationType
source	<xs:complexType name="SubordinateLocation">   <xs:sequence>     <xs:element name="LocationIdentification" type="LocationIdentificationTypeContent" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">UNLoCode</xs:documentation>         <xs:documentation xml:lang="DE">UNLoCode</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LocationName" type="NameType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">name of the location</xs:documentation>         <xs:documentation xml:lang="DE">Name</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LocationType" type="LocationTypeCode" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">type of the location</xs:documentation>         <xs:documentation xml:lang="DE">Typ des Orts</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PlaceOfLoading" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">place of loading</xs:documentation>         <xs:documentation xml:lang="DE">Ladestelle</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Code" type="Code4Type"/>           <xs:element name="Name" minOccurs="0">             <xs:complexType>               <xs:simpleContent>                 <xs:restriction base="NameType">                   <xs:minLength value="1"/>                   <xs:maxLength value="35"/>                   <xs:attribute name="languageLocale" type="xs:string"/>                 </xs:restriction>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element SubordinateLocation/LocationIdentification

diagram
type	LocationIdentificationTypeContent
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation length  5 pattern  [A-Z]{2}[A-Z0-9]{3}
annotation	documentation UNLoCode documentation UNLoCode
source	<xs:element name="LocationIdentification" type="LocationIdentificationTypeContent" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">UNLoCode</xs:documentation>     <xs:documentation xml:lang="DE">UNLoCode</xs:documentation>   </xs:annotation> </xs:element>

element SubordinateLocation/LocationName

diagram
type	NameType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string      DE
annotation	documentation name of the location documentation Name
source	<xs:element name="LocationName" type="NameType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">name of the location</xs:documentation>     <xs:documentation xml:lang="DE">Name</xs:documentation>   </xs:annotation> </xs:element>

element SubordinateLocation/LocationType

diagram
type	LocationTypeCode
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation type of the location documentation Typ des Orts
source	<xs:element name="LocationType" type="LocationTypeCode" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">type of the location</xs:documentation>     <xs:documentation xml:lang="DE">Typ des Orts</xs:documentation>   </xs:annotation> </xs:element>

element SubordinateLocation/PlaceOfLoading

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Code Name
annotation	documentation place of loading documentation Ladestelle
source	<xs:element name="PlaceOfLoading" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">place of loading</xs:documentation>     <xs:documentation xml:lang="DE">Ladestelle</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Code" type="Code4Type"/>       <xs:element name="Name" minOccurs="0">         <xs:complexType>           <xs:simpleContent>             <xs:restriction base="NameType">               <xs:minLength value="1"/>               <xs:maxLength value="35"/>               <xs:attribute name="languageLocale" type="xs:string"/>             </xs:restriction>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element SubordinateLocation/PlaceOfLoading/Code

diagram
type	Code4Type
properties	content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  4
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="Code" type="Code4Type"/>

element SubordinateLocation/PlaceOfLoading/Name

diagram
type	restriction of NameType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  35
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string
source	<xs:element name="Name" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:restriction base="NameType">         <xs:minLength value="1"/>         <xs:maxLength value="35"/>         <xs:attribute name="languageLocale" type="xs:string"/>       </xs:restriction>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute SubordinateLocation/PlaceOfLoading/Name/@languageLocale

type	xs:string
source	<xs:attribute name="languageLocale" type="xs:string"/>

complexType TemperatureMeasureType

diagram
type	extension of TemperatureMeasureTypeContent
properties	base  TemperatureMeasureTypeContent
facets	Kind  Value  Annotation minInclusive  -999 maxInclusive  999
attributes	Name   Type   Use   Default   Fixed   Annotation unitCode   xs:string   required
source	<xs:complexType name="TemperatureMeasureType">   <xs:simpleContent>     <xs:extension base="TemperatureMeasureTypeContent">       <xs:attribute name="unitCode" type="xs:string" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute TemperatureMeasureType/@unitCode

type	xs:string
properties	use  required
source	<xs:attribute name="unitCode" type="xs:string" use="required"/>

complexType TerminalLocationType

diagram
type	extension of SubordinateLocation
properties	base  SubordinateLocation
children	LocationIdentification LocationName LocationType PlaceOfLoading
used by	elements  DeletionMessage/TerminalLocation SlotStatusHeaderType/TerminalLocation
source	<xs:complexType name="TerminalLocationType">   <xs:complexContent>     <xs:extension base="SubordinateLocation"/>   </xs:complexContent> </xs:complexType>

complexType Text255Type

diagram
type	extension of Text255TypeContent
properties	base  Text255TypeContent
used by	element  DeletionMessage/Comment
facets	Kind  Value  Annotation minLength  1 maxLength  255
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale         DE
source	<xs:complexType name="Text255Type">   <xs:simpleContent>     <xs:extension base="Text255TypeContent">       <xs:attribute name="languageLocale" default="DE"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute Text255Type/@languageLocale

properties	default  DE
source	<xs:attribute name="languageLocale" default="DE"/>

complexType TextType

diagram
type	extension of xs:string
properties	base  xs:string
used by	elements  PartyType/Description Error/ErrorInformation
attributes	Name   Type   Use   Default   Fixed   Annotation languageLocale   xs:string   optional   DE
source	<xs:complexType name="TextType">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="languageLocale" type="xs:string" use="optional" default="DE"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute TextType/@languageLocale

type	xs:string
properties	use  optional default  DE
source	<xs:attribute name="languageLocale" type="xs:string" use="optional" default="DE"/>

complexType Transaction

diagram
used by	element  Deletion/Transaction
attributes	Name   Type   Use   Default   Fixed   Annotation code   xs:string            documentation transaction code documentation Code der Transaktion version   xs:string            documentation transaction version documentation Version der Transaktion type   xs:string            documentation transaction type (i.e. TransportCoordination, Response, ...) documentation Typ der Nachricht (z.B. TransportCoordination, Response, ...)
annotation	documentation code, version and type of transaction documentation Das Element beinhaltet den Code und die Version  der Transaktion und den Typ der Nachricht
source	<xs:complexType name="Transaction">   <xs:annotation>     <xs:documentation xml:lang="EN">code, version and type of transaction</xs:documentation>     <xs:documentation xml:lang="DE">Das Element beinhaltet den Code und die Version  der Transaktion und den Typ der Nachricht</xs:documentation>   </xs:annotation>   <xs:attribute name="code" type="xs:string">     <xs:annotation>       <xs:documentation xml:lang="EN">transaction code</xs:documentation>       <xs:documentation xml:lang="DE">Code der Transaktion</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="version" type="xs:string">     <xs:annotation>       <xs:documentation xml:lang="EN">transaction version</xs:documentation>       <xs:documentation xml:lang="DE">Version der Transaktion</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="type" type="xs:string">     <xs:annotation>       <xs:documentation xml:lang="EN">transaction type (i.e. TransportCoordination, Response, ...)</xs:documentation>       <xs:documentation xml:lang="DE">Typ der Nachricht (z.B. TransportCoordination, Response, ...)</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute Transaction/@code

type	xs:string
annotation	documentation transaction code documentation Code der Transaktion
source	<xs:attribute name="code" type="xs:string">   <xs:annotation>     <xs:documentation xml:lang="EN">transaction code</xs:documentation>     <xs:documentation xml:lang="DE">Code der Transaktion</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Transaction/@version

type	xs:string
annotation	documentation transaction version documentation Version der Transaktion
source	<xs:attribute name="version" type="xs:string">   <xs:annotation>     <xs:documentation xml:lang="EN">transaction version</xs:documentation>     <xs:documentation xml:lang="DE">Version der Transaktion</xs:documentation>   </xs:annotation> </xs:attribute>

attribute Transaction/@type

type	xs:string
annotation	documentation transaction type (i.e. TransportCoordination, Response, ...) documentation Typ der Nachricht (z.B. TransportCoordination, Response, ...)
source	<xs:attribute name="type" type="xs:string">   <xs:annotation>     <xs:documentation xml:lang="EN">transaction type (i.e. TransportCoordination, Response, ...)</xs:documentation>     <xs:documentation xml:lang="DE">Typ der Nachricht (z.B. TransportCoordination, Response, ...)</xs:documentation>   </xs:annotation> </xs:attribute>

complexType TransportCompanyCodeType

diagram
type	restriction of Code4Type
properties	base  Code4Type
used by	element  TransportCompanyType/CompanyCode
facets	Kind  Value  Annotation minLength  1 maxLength  4 pattern  [A-Z0-9]+
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation transportcompany code documentation Code des Transportunternehmers
source	<xs:complexType name="TransportCompanyCodeType">   <xs:annotation>     <xs:documentation xml:lang="EN">transportcompany code</xs:documentation>     <xs:documentation xml:lang="DE">Code des Transportunternehmers</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:restriction base="Code4Type">       <xs:pattern value="[A-Z0-9]+"/>     </xs:restriction>   </xs:simpleContent> </xs:complexType>

complexType TransportCompanyType

diagram
children	CompanyCode Companytype CompanyName
used by	element  ParticipantInformationType/Company
source	<xs:complexType name="TransportCompanyType">   <xs:sequence>     <xs:element name="CompanyCode" type="TransportCompanyCodeType"/>     <xs:element name="Companytype" type="TransportCompanyTypeType" minOccurs="0"/>     <xs:element name="CompanyName" type="TransportCompanyNameType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element TransportCompanyType/CompanyCode

diagram
type	TransportCompanyCodeType
properties	content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  4 pattern  [A-Z0-9]+
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="CompanyCode" type="TransportCompanyCodeType"/>

element TransportCompanyType/Companytype

diagram
type	TransportCompanyTypeType
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:element name="Companytype" type="TransportCompanyTypeType" minOccurs="0"/>

element TransportCompanyType/CompanyName

diagram
type	TransportCompanyNameType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  20
source	<xs:element name="CompanyName" type="TransportCompanyNameType" minOccurs="0"/>

complexType TransportCompanyTypeType

diagram
type	extension of Code17Type
properties	base  Code17Type
used by	element  TransportCompanyType/Companytype
facets	Kind  Value  Annotation minLength  1 maxLength  17
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation transportcompany type documentation Art des Transportunternehmers (z.B. Transportunternehmer / Subunternehmer)
source	<xs:complexType name="TransportCompanyTypeType">   <xs:annotation>     <xs:documentation xml:lang="EN">transportcompany type</xs:documentation>     <xs:documentation xml:lang="DE">Art des Transportunternehmers (z.B. Transportunternehmer / Subunternehmer)</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="Code17Type"/>   </xs:simpleContent> </xs:complexType>

complexType TransportMeans

diagram
children	TransportMeansTypeCode TransportMeansIdentification AdditionalTransportMeansID TransportMeansName RegistrationNationalityCode TransportMeansOwner IMO
source	<xs:complexType name="TransportMeans">   <xs:sequence>     <xs:element name="TransportMeansTypeCode" type="TransportMeansTypeCode" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">coded means of transport</xs:documentation>         <xs:documentation xml:lang="DE">Art des Transportmittels</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TransportMeansIdentification" type="TransportMeansIdentificationType">       <xs:annotation>         <xs:documentation xml:lang="EN">number identifying the ship</xs:documentation>         <xs:documentation xml:lang="DE">Schiffsnummer</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="AdditionalTransportMeansID" type="AdditionalTransportMeansID" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">call sign of the ship</xs:documentation>         <xs:documentation xml:lang="DE">Call-Sign</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TransportMeansName" type="TransportMeansName" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">name of the ship</xs:documentation>         <xs:documentation xml:lang="DE">Schiffsname</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RegistrationNationalityCode" type="RegistrationNationalityType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">registered nationality of the ship</xs:documentation>         <xs:documentation>Nationalität des Schiffs</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TransportMeansOwner" type="OwnerParty" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">owner of the ship</xs:documentation>         <xs:documentation xml:lang="DE">Eigentümer des Schiffs</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="IMO" type="Reference12Type" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="EN">IMO-number of the ship</xs:documentation>         <xs:documentation xml:lang="DE">IMO-Nummer des Schiffs</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TransportMeans/TransportMeansTypeCode

diagram
type	TransportMeansTypeCode
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation minLength  1 maxLength  8
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation coded means of transport documentation Art des Transportmittels
source	<xs:element name="TransportMeansTypeCode" type="TransportMeansTypeCode" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">coded means of transport</xs:documentation>     <xs:documentation xml:lang="DE">Art des Transportmittels</xs:documentation>   </xs:annotation> </xs:element>

element TransportMeans/TransportMeansIdentification

diagram
type	TransportMeansIdentificationType
properties	content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  9
annotation	documentation number identifying the ship documentation Schiffsnummer
source	<xs:element name="TransportMeansIdentification" type="TransportMeansIdentificationType">   <xs:annotation>     <xs:documentation xml:lang="EN">number identifying the ship</xs:documentation>     <xs:documentation xml:lang="DE">Schiffsnummer</xs:documentation>   </xs:annotation> </xs:element>

element TransportMeans/AdditionalTransportMeansID

diagram
type	AdditionalTransportMeansID
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
annotation	documentation call sign of the ship documentation Call-Sign
source	<xs:element name="AdditionalTransportMeansID" type="AdditionalTransportMeansID" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">call sign of the ship</xs:documentation>     <xs:documentation xml:lang="DE">Call-Sign</xs:documentation>   </xs:annotation> </xs:element>

element TransportMeans/TransportMeansName

diagram
type	TransportMeansName
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation name of the ship documentation Schiffsname
source	<xs:element name="TransportMeansName" type="TransportMeansName" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">name of the ship</xs:documentation>     <xs:documentation xml:lang="DE">Schiffsname</xs:documentation>   </xs:annotation> </xs:element>

element TransportMeans/RegistrationNationalityCode

diagram
type	RegistrationNationalityType
properties	minOcc  0 maxOcc  1 content  complex
children	NationalityCode NationalityDescription
annotation	documentation registered nationality of the ship documentation Nationalität des Schiffs
source	<xs:element name="RegistrationNationalityCode" type="RegistrationNationalityType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">registered nationality of the ship</xs:documentation>     <xs:documentation>Nationalität des Schiffs</xs:documentation>   </xs:annotation> </xs:element>

element TransportMeans/TransportMeansOwner

diagram
type	OwnerParty
properties	minOcc  0 maxOcc  1 content  complex
children	PartyIdentification Name Description InformationContact
annotation	documentation owner of the ship documentation Eigentümer des Schiffs
source	<xs:element name="TransportMeansOwner" type="OwnerParty" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">owner of the ship</xs:documentation>     <xs:documentation xml:lang="DE">Eigentümer des Schiffs</xs:documentation>   </xs:annotation> </xs:element>

element TransportMeans/IMO

diagram
type	Reference12Type
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  12
annotation	documentation IMO-number of the ship documentation IMO-Nummer des Schiffs
source	<xs:element name="IMO" type="Reference12Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="EN">IMO-number of the ship</xs:documentation>     <xs:documentation xml:lang="DE">IMO-Nummer des Schiffs</xs:documentation>   </xs:annotation> </xs:element>

complexType TransportMeansTypeCode

diagram
type	extension of TransportMeansTypeCodeContent
properties	base  TransportMeansTypeCodeContent
used by	element  TransportMeans/TransportMeansTypeCode
facets	Kind  Value  Annotation minLength  1 maxLength  8
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="TransportMeansTypeCode">   <xs:simpleContent>     <xs:extension base="TransportMeansTypeCodeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute TransportMeansTypeCode/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute TransportMeansTypeCode/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType TransportModeCode

diagram
type	extension of TransportModeCodeContent
properties	base  TransportModeCodeContent
facets	Kind  Value  Annotation minLength  1 maxLength  7
attributes	Name   Type   Use   Default   Fixed   Annotation codeListIdentification   xs:string            agencyID   xs:string      DAKOSY
source	<xs:complexType name="TransportModeCode">   <xs:simpleContent>     <xs:extension base="TransportModeCodeContent">       <xs:attribute name="codeListIdentification" type="xs:string"/>       <xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute TransportModeCode/@codeListIdentification

type	xs:string
source	<xs:attribute name="codeListIdentification" type="xs:string"/>

attribute TransportModeCode/@agencyID

type	xs:string
properties	default  DAKOSY
source	<xs:attribute name="agencyID" type="xs:string" default="DAKOSY"/>

complexType TruckerID

diagram
type	extension of TruckerIDType
properties	base  TruckerIDType
used by	elements  Legitimation/TruckerID ParticipantInformationType/TruckerID
facets	Kind  Value  Annotation minLength  1 maxLength  255 pattern  [^\s]*
attributes	Name   Type   Use   Default   Fixed   Annotation IDP   derived by: xs:string            documentation Specification of the identity provider according to the IDPL code list documentation Angabe des Identity Providers gemäß der Codeliste IDPL
annotation	documentation TruckerID of the driver or TruckGATE-User documentation TruckerID des Fahrers oder TruckGATE-Benutzers
source	<xs:complexType name="TruckerID">   <xs:annotation>     <xs:documentation xml:lang="EN">TruckerID of the driver or TruckGATE-User</xs:documentation>     <xs:documentation xml:lang="DE">TruckerID des Fahrers oder TruckGATE-Benutzers</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="TruckerIDType">       <xs:attribute name="IDP">         <xs:annotation>           <xs:documentation xml:lang="EN">Specification of the identity provider according to the IDPL code list</xs:documentation>           <xs:documentation xml:lang="DE">Angabe des Identity Providers gemäß der Codeliste IDPL</xs:documentation>         </xs:annotation>         <xs:simpleType>           <xs:restriction base="xs:string">             <xs:minLength value="1"/>             <xs:maxLength value="7"/>             <xs:pattern value="[A-Z0-9]+"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute TruckerID/@IDP

type	restriction of xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  7 pattern  [A-Z0-9]+
annotation	documentation Specification of the identity provider according to the IDPL code list documentation Angabe des Identity Providers gemäß der Codeliste IDPL
source	<xs:attribute name="IDP">   <xs:annotation>     <xs:documentation xml:lang="EN">Specification of the identity provider according to the IDPL code list</xs:documentation>     <xs:documentation xml:lang="DE">Angabe des Identity Providers gemäß der Codeliste IDPL</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="7"/>       <xs:pattern value="[A-Z0-9]+"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

complexType WeightMeasureType

diagram
type	extension of WeightMeasureTypeContent
properties	base  WeightMeasureTypeContent
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999999
attributes	Name   Type   Use   Default   Fixed   Annotation unitCode   xs:string   required
source	<xs:complexType name="WeightMeasureType">   <xs:simpleContent>     <xs:extension base="WeightMeasureTypeContent">       <xs:attribute name="unitCode" type="xs:string" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute WeightMeasureType/@unitCode

type	xs:string
properties	use  required
source	<xs:attribute name="unitCode" type="xs:string" use="required"/>

simpleType code10

type	restriction of xs:normalizedString
properties	base  xs:normalizedString
used by	attributes  generic/@key QrType/@type
facets	Kind  Value  Annotation minLength  1 maxLength  10
source	<xs:simpleType name="code10">   <xs:restriction base="xs:normalizedString">     <xs:minLength value="1"/>     <xs:maxLength value="10"/>   </xs:restriction> </xs:simpleType>

simpleType Code17TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  Code17Type
facets	Kind  Value  Annotation minLength  1 maxLength  17
source	<xs:simpleType name="Code17TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="17"/>   </xs:restriction> </xs:simpleType>

simpleType Code2TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  Code2Type
facets	Kind  Value  Annotation minLength  1 maxLength  2
source	<xs:simpleType name="Code2TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="2"/>   </xs:restriction> </xs:simpleType>

simpleType Code30TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  Code30Type
facets	Kind  Value  Annotation minLength  1 maxLength  30
source	<xs:simpleType name="Code30TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="30"/>   </xs:restriction> </xs:simpleType>

simpleType Code3TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  Code3Type
facets	Kind  Value  Annotation minLength  1 maxLength  3
source	<xs:simpleType name="Code3TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="3"/>   </xs:restriction> </xs:simpleType>

simpleType Code4TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  Code4Type
facets	Kind  Value  Annotation minLength  1 maxLength  4
source	<xs:simpleType name="Code4TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="4"/>   </xs:restriction> </xs:simpleType>

simpleType Code6TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  Code6Type
facets	Kind  Value  Annotation minLength  1 maxLength  6
source	<xs:simpleType name="Code6TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="6"/>   </xs:restriction> </xs:simpleType>

simpleType CommentTypeContent

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  30
source	<xs:simpleType name="CommentTypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="30"/>   </xs:restriction> </xs:simpleType>

simpleType ConsigneeReferenceType

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:simpleType name="ConsigneeReferenceType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType ContainerHeightTypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  ContainerHeightType
facets	Kind  Value  Annotation length  2
source	<xs:simpleType name="ContainerHeightTypeContent">   <xs:restriction base="xs:string">     <xs:length value="2"/>   </xs:restriction> </xs:simpleType>

simpleType ContainerLengthTypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  ContainerLengthType
facets	Kind  Value  Annotation length  2
source	<xs:simpleType name="ContainerLengthTypeContent">   <xs:restriction base="xs:string">     <xs:length value="2"/>   </xs:restriction> </xs:simpleType>

simpleType ContainerNumber

type	restriction of xs:string
properties	base  xs:string
used by	complexType  ContainerNumberType
facets	Kind  Value  Annotation minLength  1 maxLength  12
source	<xs:simpleType name="ContainerNumber">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="12"/>   </xs:restriction> </xs:simpleType>

simpleType ContainerTypeTypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  ContainerTypeType
facets	Kind  Value  Annotation length  2
source	<xs:simpleType name="ContainerTypeTypeContent">   <xs:restriction base="xs:string">     <xs:length value="2"/>   </xs:restriction> </xs:simpleType>

simpleType CountryDescription

type	restriction of xs:string
properties	base  xs:string
used by	element  RegistrationNationalityType/NationalityDescription
facets	Kind  Value  Annotation minLength  1 maxLength  70
source	<xs:simpleType name="CountryDescription">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="70"/>   </xs:restriction> </xs:simpleType>

simpleType CountType

type	restriction of xs:integer
properties	base  xs:integer
used by	elements  DeletionMessage/Load/Position ReferenceType/Position
facets	Kind  Value  Annotation minInclusive  1
source	<xs:simpleType name="CountType">   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>   </xs:restriction> </xs:simpleType>

simpleType CountType99

type	restriction of xs:integer
properties	base  xs:integer
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99
source	<xs:simpleType name="CountType99">   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="99"/>   </xs:restriction> </xs:simpleType>

simpleType dateTimeWithoutTimezone

type	restriction of xs:dateTime
properties	base  xs:dateTime
used by	element  DateTimeType/DateTime complexType  DocumentCreationTime
facets	Kind  Value  Annotation pattern  .+T[^Z+-]+
source	<xs:simpleType name="dateTimeWithoutTimezone">   <xs:restriction base="xs:dateTime">     <xs:pattern value=".+T[^Z+-]+"/>   </xs:restriction> </xs:simpleType>

simpleType DeletionTypeType

type	restriction of xs:string
properties	base  xs:string
used by	element  DeletionMessage/DeletionType
facets	Kind  Value  Annotation enumeration  Coordination enumeration  Load
annotation	documentation Coordination = Deletion of the TransportCoordination Load = Deletion of a single load documentation Coordination = Storno TransportCoordination Load = Storno einzelne Ladeeinheit
source	<xs:simpleType name="DeletionTypeType">   <xs:annotation>     <xs:documentation xml:lang="EN">Coordination = Deletion of the TransportCoordination Load = Deletion of a single load</xs:documentation>     <xs:documentation xml:lang="DE">Coordination = Storno TransportCoordination Load = Storno einzelne Ladeeinheit</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Coordination"/>     <xs:enumeration value="Load"/>   </xs:restriction> </xs:simpleType>

simpleType DistanceUnitType

type	restriction of xs:string
properties	base  xs:string
used by	attribute  DistanceType/@unit
facets	Kind  Value  Annotation enumeration  km enumeration  mi enumeration  m
source	<xs:simpleType name="DistanceUnitType">   <xs:restriction base="xs:string">     <xs:enumeration value="km"/>     <xs:enumeration value="mi"/>     <xs:enumeration value="m"/>     <!-- Kilometer -->     <!-- Meilen -->     <!-- Meter -->   </xs:restriction> </xs:simpleType>

simpleType DocumentExchangeNumber

type	restriction of xs:string
properties	base  xs:string
used by	element  Interchange/ExchangeNumber
facets	Kind  Value  Annotation minLength  1 maxLength  14
annotation	documentation A unique reference numberof an XML interchange. documentation Eindeutige Referenz eines XML Interchange.
source	<xs:simpleType name="DocumentExchangeNumber">   <xs:annotation>     <xs:documentation xml:lang="EN">A unique reference numberof an XML interchange.</xs:documentation>     <xs:documentation xml:lang="DE">Eindeutige Referenz eines XML Interchange.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="14"/>   </xs:restriction> </xs:simpleType>

simpleType DocumentTestIndicator

type	restriction of xs:string
properties	base  xs:string
used by	element  Interchange/TestIndicator
facets	Kind  Value  Annotation pattern  [01]
annotation	documentation 1- true; transmission for test purpose documentation 0 - false (default);
source	<xs:simpleType name="DocumentTestIndicator">   <xs:annotation>     <xs:documentation xml:lang="EN">1- true; transmission for test purpose</xs:documentation>     <xs:documentation xml:lang="EN">0 - false (default);</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[01]"/>   </xs:restriction> </xs:simpleType>

simpleType Email

type	restriction of xs:string
properties	base  xs:string
used by	element  Contact/Email
facets	Kind  Value  Annotation minLength  3 maxLength  70
annotation	documentation email address documentation E-Mail-Adresse des Partners
source	<xs:simpleType name="Email">   <xs:annotation>     <xs:documentation xml:lang="EN">email address</xs:documentation>     <xs:documentation xml:lang="DE">E-Mail-Adresse des Partners</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="3"/>     <xs:maxLength value="70"/>   </xs:restriction> </xs:simpleType>

simpleType ErrorCode

type	restriction of xs:string
properties	base  xs:string
used by	element  Error/ErrorCode
facets	Kind  Value  Annotation minLength  1 maxLength  8
source	<xs:simpleType name="ErrorCode">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="8"/>   </xs:restriction> </xs:simpleType>

simpleType Fax

type	restriction of xs:string
properties	base  xs:string
used by	element  Contact/Fax
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation telefax communication number documentation Telefaxnummer
source	<xs:simpleType name="Fax">   <xs:annotation>     <xs:documentation xml:lang="EN">telefax communication number</xs:documentation>     <xs:documentation xml:lang="DE">Telefaxnummer</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType GReferenceTypeContent

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:simpleType name="GReferenceTypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType IndicatorType

type	xs:boolean
properties	base  xs:boolean
used by	simpleType  InspectionTypeContent attribute  ContainerNumberType/@shippersOwned
annotation	documentation boolean indicator documentation Boolescher Indikator
source	<xs:simpleType name="IndicatorType">   <xs:annotation>     <xs:documentation xml:lang="EN">boolean indicator</xs:documentation>     <xs:documentation xml:lang="DE">Boolescher Indikator</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:boolean"/> </xs:simpleType>

simpleType InspectionTypeContent

type	IndicatorType
properties	base  IndicatorType
used by	complexType  InspectionType
source	<xs:simpleType name="InspectionTypeContent">   <xs:restriction base="IndicatorType"/> </xs:simpleType>

simpleType IReferenceTypeContent

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:simpleType name="IReferenceTypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType ISOCodeType

type	restriction of xs:string
properties	base  xs:string
used by	element  DeletionMessage/Load/ContainerLoad/Container/ISOCode
facets	Kind  Value  Annotation length  4
source	<xs:simpleType name="ISOCodeType">   <xs:restriction base="xs:string">     <xs:length value="4"/>   </xs:restriction> </xs:simpleType>

simpleType LicensePlateEUFullRange

type	restriction of xs:string
properties	base  xs:string
used by	elements  Legitimation/TrailerRegistration Legitimation/VehicleRegistration
facets	Kind  Value  Annotation pattern  [A-ZÄÖÜ0-9\- ]{1,12}
source	<xs:simpleType name="LicensePlateEUFullRange">   <xs:restriction base="xs:string">     <xs:pattern value="[A-ZÄÖÜ0-9\- ]{1,12}"/>   </xs:restriction> </xs:simpleType>

simpleType LinearMeasureTypeContent

type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  LinearMeasureType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  999
source	<xs:simpleType name="LinearMeasureTypeContent">   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="999"/>   </xs:restriction> </xs:simpleType>

simpleType LoadingIndicatorType

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation length  1 enumeration  E enumeration  F
annotation	documentation E = empty F = full documentation E = leer F = voll
source	<xs:simpleType name="LoadingIndicatorType">   <xs:annotation>     <xs:documentation xml:lang="EN">E = empty F = full</xs:documentation>     <xs:documentation xml:lang="DE">E = leer F = voll</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:length value="1"/>     <xs:enumeration value="E"/>     <xs:enumeration value="F"/>   </xs:restriction> </xs:simpleType>

simpleType LocationIdentificationTypeContent

type	restriction of xs:string
properties	base  xs:string
used by	elements  LocationType/LocationIdentification SubordinateLocation/LocationIdentification
facets	Kind  Value  Annotation length  5 pattern  [A-Z]{2}[A-Z0-9]{3}
source	<xs:simpleType name="LocationIdentificationTypeContent">   <xs:restriction base="xs:string">     <xs:length value="5"/>     <xs:pattern value="[A-Z]{2}[A-Z0-9]{3}"/>   </xs:restriction> </xs:simpleType>

simpleType LocationTypeContent

type	xs:string
properties	base  xs:string
used by	complexType  LocationTypeCode
source	<xs:simpleType name="LocationTypeContent">   <xs:restriction base="xs:string"/> </xs:simpleType>

simpleType MessageCount

type	xs:positiveInteger
properties	base  xs:positiveInteger
used by	element  Interchange/MessageCount
annotation	documentation Number of messages (elements) that are collected in the interchange. documentation Anzahl der Nachrichten (Message-Elemente) die im Interchange übertragen werden.
source	<xs:simpleType name="MessageCount">   <xs:annotation>     <xs:documentation xml:lang="EN">Number of messages (elements) that are collected in the interchange.</xs:documentation>     <xs:documentation xml:lang="DE">Anzahl der Nachrichten (Message-Elemente) die im Interchange übertragen werden.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:positiveInteger"/> </xs:simpleType>

simpleType MessageFunction

type	restriction of xs:string
properties	base  xs:string
used by	element  MessageHeader/MessageFunction
facets	Kind  Value  Annotation minLength  1 maxLength  7
annotation	documentation This indicator is used to mark a message as original, replacement or cancellation documentation Dieses Feld wird genutzt, um eine Nachricht als Original, Aktualisierung oder Stornierung zu kennzeichnen
source	<xs:simpleType name="MessageFunction">   <xs:annotation>     <xs:documentation xml:lang="EN">This indicator is used to mark a message as original, replacement or cancellation</xs:documentation>     <xs:documentation xml:lang="DE">Dieses Feld wird genutzt, um eine Nachricht als Original, Aktualisierung oder Stornierung zu kennzeichnen</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="7"/>   </xs:restriction> </xs:simpleType>

simpleType MessageReferenceNumber

type	restriction of xs:string
properties	base  xs:string
used by	elements  MessageHeader/MessageReferenceNumber MessageHeader/PreviousMessageReferenceNumber
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation uniqe reference number identifying a single message. An xml-file my contain more than one message. documentation Eindrutige Referenznummer für eine Message. Eine XML-Datei kann mehr als eine Message enthalten.
source	<xs:simpleType name="MessageReferenceNumber">   <xs:annotation>     <xs:documentation xml:lang="EN">uniqe reference number identifying a single message. An xml-file my contain more than one message.</xs:documentation>     <xs:documentation xml:lang="DE">Eindrutige Referenznummer für eine Message. Eine XML-Datei kann mehr als eine Message enthalten.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType Name

type	restriction of xs:string
properties	base  xs:string
used by	elements  Contact/Name Legitimation/TruckerName
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation Name or department of a contact documentation Name / Firma der beteiligten Partei oder des Kontaktpartners
source	<xs:simpleType name="Name">   <xs:annotation>     <xs:documentation xml:lang="EN">Name or department of a contact</xs:documentation>     <xs:documentation xml:lang="DE">Name / Firma der beteiligten Partei oder des Kontaktpartners</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType Name2

type	restriction of xs:string
properties	base  xs:string
used by	element  PartyType/Name
facets	Kind  Value  Annotation maxLength  70
source	<xs:simpleType name="Name2">   <xs:restriction base="xs:string">     <xs:maxLength value="70"/>   </xs:restriction> </xs:simpleType>

simpleType ParticipantCodeType

type	restriction of xs:string
properties	base  xs:string
used by	complexType  ParticipantCode
facets	Kind  Value  Annotation minLength  1 maxLength  17 pattern  [A-Z0-9]+
source	<xs:simpleType name="ParticipantCodeType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="17"/>     <xs:pattern value="[A-Z0-9]+"/>   </xs:restriction> </xs:simpleType>

simpleType Phone

type	restriction of xs:string
properties	base  xs:string
used by	element  Contact/Telephone
facets	Kind  Value  Annotation minLength  1 maxLength  35
annotation	documentation telephone communication number documentation Telefonnummer - einfacher Text ohne Validierung
source	<xs:simpleType name="Phone">   <xs:annotation>     <xs:documentation xml:lang="EN">telephone communication number</xs:documentation>     <xs:documentation xml:lang="DE">Telefonnummer - einfacher Text ohne Validierung</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType QuayAccountNumberTypeContent

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  7
source	<xs:simpleType name="QuayAccountNumberTypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="7"/>   </xs:restriction> </xs:simpleType>

simpleType Reference07Type

type	restriction of xs:string
properties	base  xs:string
used by	element  DeletionMessage/Load/ConventionalLoad/Vehicle/BHTPortOrder
facets	Kind  Value  Annotation minLength  1 maxLength  7
source	<xs:simpleType name="Reference07Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="7"/>   </xs:restriction> </xs:simpleType>

simpleType Reference12Type

type	restriction of xs:string
properties	base  xs:string
used by	element  TransportMeans/IMO
facets	Kind  Value  Annotation minLength  1 maxLength  12
source	<xs:simpleType name="Reference12Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="12"/>   </xs:restriction> </xs:simpleType>

simpleType Reference15Type

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  15
source	<xs:simpleType name="Reference15Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="15"/>   </xs:restriction> </xs:simpleType>

simpleType Reference17Type

type	restriction of xs:string
properties	base  xs:string
used by	element  DeletionMessage/Load/ConventionalLoad/Vehicle/VIN
facets	Kind  Value  Annotation minLength  1 maxLength  17
source	<xs:simpleType name="Reference17Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="17"/>   </xs:restriction> </xs:simpleType>

simpleType Reference22Type

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  22
source	<xs:simpleType name="Reference22Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="22"/>   </xs:restriction> </xs:simpleType>

simpleType Reference35Type

type	restriction of xs:string
properties	base  xs:string
used by	attribute  generic255-35/@key
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:simpleType name="Reference35Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType Reference50Type

type	restriction of xs:string
properties	base  xs:string
used by	element  DeletionMessage/Load/ConventionalLoad/Vehicle/LoadNumber
facets	Kind  Value  Annotation minLength  1 maxLength  50
source	<xs:simpleType name="Reference50Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="50"/>   </xs:restriction> </xs:simpleType>

simpleType Reference60Type

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  60
source	<xs:simpleType name="Reference60Type">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="60"/>   </xs:restriction> </xs:simpleType>

simpleType ReferenceIDType

type	restriction of xs:string
properties	base  xs:string
used by	element  ReferenceType/ReferenceID
facets	Kind  Value  Annotation minLength  1 maxLength  35 pattern  [A-Z0-9_/\.-]+
source	<xs:simpleType name="ReferenceIDType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>     <xs:pattern value="[A-Z0-9_/\.-]+"/>   </xs:restriction> </xs:simpleType>

simpleType ReferenceTypeCodeContent

type	xs:string
properties	base  xs:string
used by	complexType  ReferenceTypeCode
source	<xs:simpleType name="ReferenceTypeCodeContent">   <xs:restriction base="xs:string"/> </xs:simpleType>

simpleType RegistrationNationality

type	xs:string
properties	base  xs:string
used by	element  RegistrationNationalityType/NationalityCode
source	<xs:simpleType name="RegistrationNationality">   <xs:restriction base="xs:string"/> </xs:simpleType>

simpleType RegistrationNumberCodeTypeContent

type	xs:string
properties	base  xs:string
used by	complexType  RegistrationNumberCodeType
source	<xs:simpleType name="RegistrationNumberCodeTypeContent">   <xs:restriction base="xs:string"/> </xs:simpleType>

simpleType RegistrationNumberTypeContent

type	restriction of xs:string
properties	base  xs:string
used by	element  RegistrationNumberType/Number
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:simpleType name="RegistrationNumberTypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType RegistrationNumberTypePosition

type	restriction of xs:integer
properties	base  xs:integer
used by	element  RegistrationNumberType/Position
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  99999
source	<xs:simpleType name="RegistrationNumberTypePosition">   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="99999"/>   </xs:restriction> </xs:simpleType>

simpleType ResponseType

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation enumeration  functional enumeration  technical
source	<xs:simpleType name="ResponseType">   <xs:restriction base="xs:string">     <xs:enumeration value="functional"/>     <xs:enumeration value="technical"/>   </xs:restriction> </xs:simpleType>

simpleType SealNumberType

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  10
source	<xs:simpleType name="SealNumberType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="10"/>   </xs:restriction> </xs:simpleType>

simpleType SignificanceType

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation enumeration  statusRequest enumeration  slotBooking enumeration  transportBooking
annotation	documentation Bedeutung der Meldung
source	<xs:simpleType name="SignificanceType">   <xs:annotation>     <xs:documentation xml:lang="DE">Bedeutung der Meldung</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="statusRequest"/>     <xs:enumeration value="slotBooking"/>     <xs:enumeration value="transportBooking"/>   </xs:restriction> </xs:simpleType>

simpleType TemperatureMeasureTypeContent

type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  TemperatureMeasureType
facets	Kind  Value  Annotation minInclusive  -999 maxInclusive  999
source	<xs:simpleType name="TemperatureMeasureTypeContent">   <xs:restriction base="xs:integer">     <xs:minInclusive value="-999"/>     <xs:maxInclusive value="999"/>   </xs:restriction> </xs:simpleType>

simpleType Text255TypeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexTypes  QrType Text255Type
facets	Kind  Value  Annotation minLength  1 maxLength  255
source	<xs:simpleType name="Text255TypeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="255"/>   </xs:restriction> </xs:simpleType>

simpleType TpStatus

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation length  3
source	<xs:simpleType name="TpStatus">   <xs:restriction base="xs:string">     <xs:length value="3"/>   </xs:restriction> </xs:simpleType>

simpleType TransportCompanyNameType

type	restriction of xs:string
properties	base  xs:string
used by	element  TransportCompanyType/CompanyName
facets	Kind  Value  Annotation minLength  1 maxLength  20
annotation	documentation transportcompany name documentation Name des Transportunternehmers
source	<xs:simpleType name="TransportCompanyNameType">   <xs:annotation>     <xs:documentation xml:lang="EN">transportcompany name</xs:documentation>     <xs:documentation xml:lang="DE">Name des Transportunternehmers</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="20"/>   </xs:restriction> </xs:simpleType>

simpleType TransportMeansIdentificationType

type	restriction of xs:string
properties	base  xs:string
used by	element  TransportMeans/TransportMeansIdentification
facets	Kind  Value  Annotation minLength  1 maxLength  9
source	<xs:simpleType name="TransportMeansIdentificationType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="9"/>   </xs:restriction> </xs:simpleType>

simpleType TransportMeansName

type	restriction of xs:string
properties	base  xs:string
used by	element  TransportMeans/TransportMeansName
facets	Kind  Value  Annotation minLength  1 maxLength  35
source	<xs:simpleType name="TransportMeansName">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="35"/>   </xs:restriction> </xs:simpleType>

simpleType TransportMeansTypeCodeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  TransportMeansTypeCode
facets	Kind  Value  Annotation minLength  1 maxLength  8
source	<xs:simpleType name="TransportMeansTypeCodeContent">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="8"/>   </xs:restriction> </xs:simpleType>

simpleType TransportModeCodeContent

type	restriction of xs:string
properties	base  xs:string
used by	complexType  TransportModeCode
facets	Kind  Value  Annotation minLength  1 maxLength  7
source	<xs:simpleType name="TransportModeCodeContent">   <xs:restriction base="xs:string">     <xs:maxLength value="7"/>     <xs:minLength value="1"/>   </xs:restriction> </xs:simpleType>

simpleType TruckerIDType

type	restriction of xs:string
properties	base  xs:string
used by	complexType  TruckerID
facets	Kind  Value  Annotation minLength  1 maxLength  255 pattern  [^\s]*
source	<xs:simpleType name="TruckerIDType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="255"/>     <xs:pattern value="[^\s]*"/>   </xs:restriction> </xs:simpleType>

simpleType VoyageNumberType

type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  Annotation minLength  1 maxLength  8
source	<xs:simpleType name="VoyageNumberType">   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="8"/>   </xs:restriction> </xs:simpleType>

simpleType WeekType

type	restriction of xs:integer
properties	base  xs:integer
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  53
source	<xs:simpleType name="WeekType">   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="53"/>   </xs:restriction> </xs:simpleType>

simpleType WeightMeasureTypeContent

type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  WeightMeasureType
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999999
source	<xs:simpleType name="WeightMeasureTypeContent">   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="9999999"/>   </xs:restriction> </xs:simpleType>
